OLIVE OIL MACHINES & COLD PRESS OLIVE OIL PRODUCTION LINES

Professional AF cold-extraction systems for farmers, commercial mills and industrial olive-oil plants — engineered to protect quality, simplify production and turn every harvest into a higher-value product. Explore capacities from 40–50 kg/h compact systems to complete high-capacity production lines. Not sure which capacity you need? Use our free Olive Oil Press Calculator.

How many olive trees do you have? Find the right press

Enter your number of olive trees, average yield per tree and daily working hours. The calculator helps estimate your crop and suggests a suitable press capacity.

Olives per day500 kg
Olives per season45 tonnes
Equivalent tree harvest1,800
Your estimated crop12.5 tonnes
Estimated oil output≈ 2,213 L
Suggested press50 kg/hour
Estimated pressing days25 days

10 vs 20 hours — a 3 or 4 month season

The comparison updates with press capacity and tree yield. It assumes 90 or 120 operating days: daily operation throughout the period.

Hours/dayOlives/day3 months: tonnes / trees4 months: tonnes / trees
10500 kg45 / 1,80060 / 2,400
201,000 kg90 / 3,600120 / 4,800

Planning estimates for olive fruit throughput, not oil output or guaranteed production. The 25 kg/tree value is an editable example, not a fixed average. Results assume continuous feeding at the selected rate; cleaning, downtime, crop conditions and actual model capacity may reduce throughput. A 20-hour schedule may require shifts and must be checked against machine specifications.

View recommended 50 kg/h press

Choose Your Olive Oil Machine Capacity

Explore dedicated olive oil machine capacity pages: 50 kg/h, 100 kg/h, 200 kg/h, 300 kg/h, 400 kg/h and 600 kg/h. Each model has its own photo gallery and technical specifications. Shop available olive oil production lines.

Frequently Asked Questions

How do I choose the right olive oil machine capacity?

Start with the total olive crop, operating days and working hours per day. This gives an approximate required kg/h capacity; the AL AFANDY calculator can estimate the closest available machine size.

Is the shop price the final project cost?

Product pages show available machine prices. Shipping, electrical configuration, accessories, installation and turnkey project scope are confirmed separately according to the destination and project requirements.

WATCH OUR OLIVE OIL PRODUCTION LINES IN OPERATION

▶
REAL MACHINERY & PROJECTS
View real AL AFANDY olive oil projects and machinery
FEATURED MOBILE OLIVE OIL PRESS

Mobile Olive Oil Press 50–100 kg/h

A compact mobile olive mill designed to bring cold extraction directly to small farms and olive-growing communities. Available in 50 kg/h and 100 kg/h configurations for investors, municipalities, cooperatives and agricultural service projects.

Mobile olive oil press operating near olive farms for investors, municipalities and farmer cooperatives – AL AFANDY

Take the press to the harvest

50 kg/h: ideal for small farms, pilot projects and low-volume mobile service.

100 kg/h: suitable for higher daily throughput and commercial service between multiple farms.

Useful for entrepreneurs who charge for seasonal pressing, as well as municipalities and cooperatives serving local growers.

VIEW MOBILE OLIVE PRESS

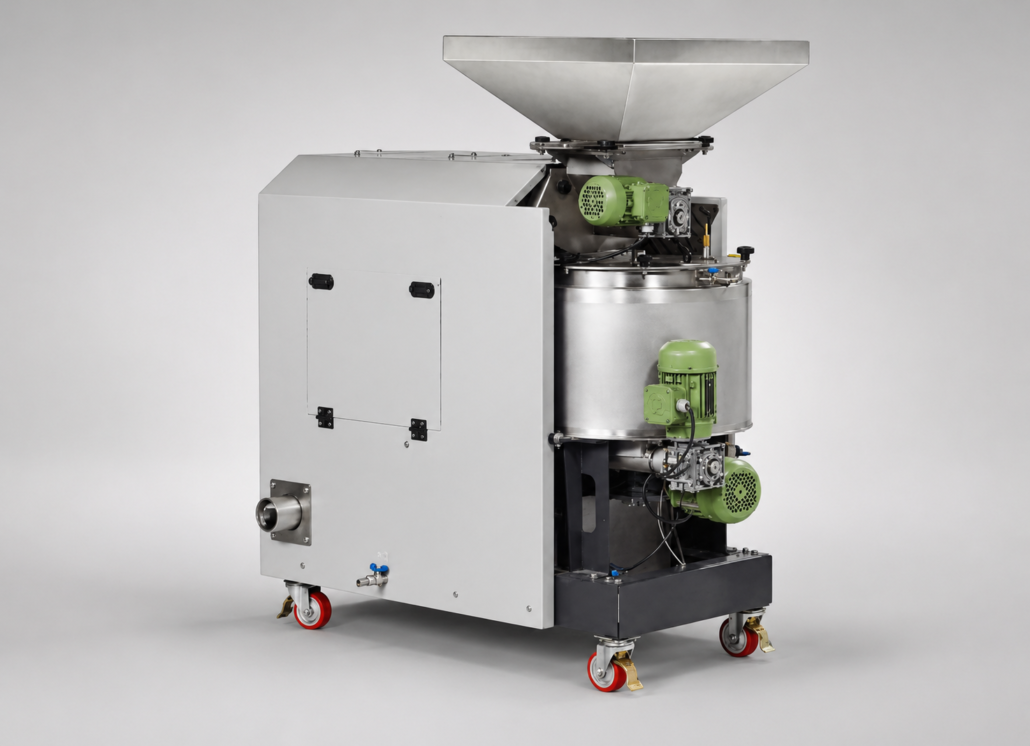

معصرة زيت الزيتون الصغيرة - ماكينة عصر الزيتون على البارد من الأفندي

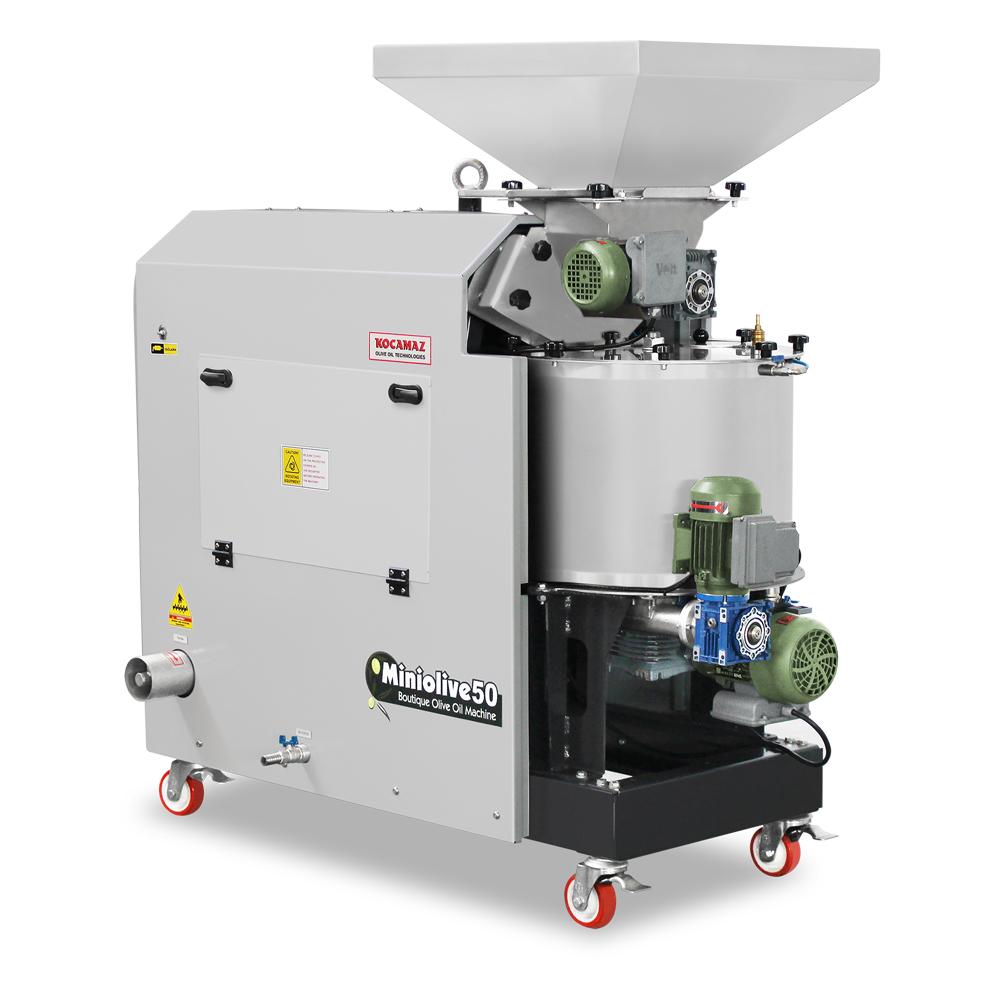

Miniolive 50 EKO olive oil machine

Miniolive 50 EKO

TECHNICAL SPECIFICATIONS • Capacity: 40–50 kg/h • Weight: 385 kg • Dimensions: 960 x 1,700 x 1,560 mm • Approx. power consumption: 3 kW/h • Installed power: 4.39 kW, 220 V; 50 Hz or 5.19 kW, 380 V; 50 Hz • Control panel: Simple type • Paste heating: Not included • Material: AISI 304 stainless steel • Malaxer capacity: 65 kg

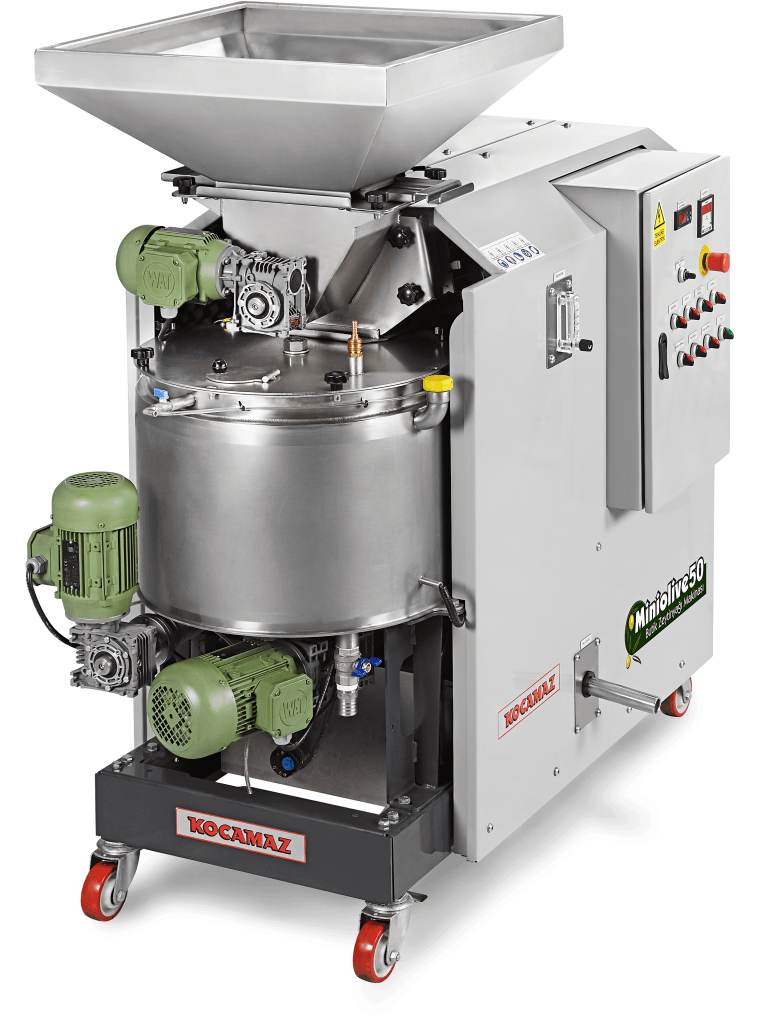

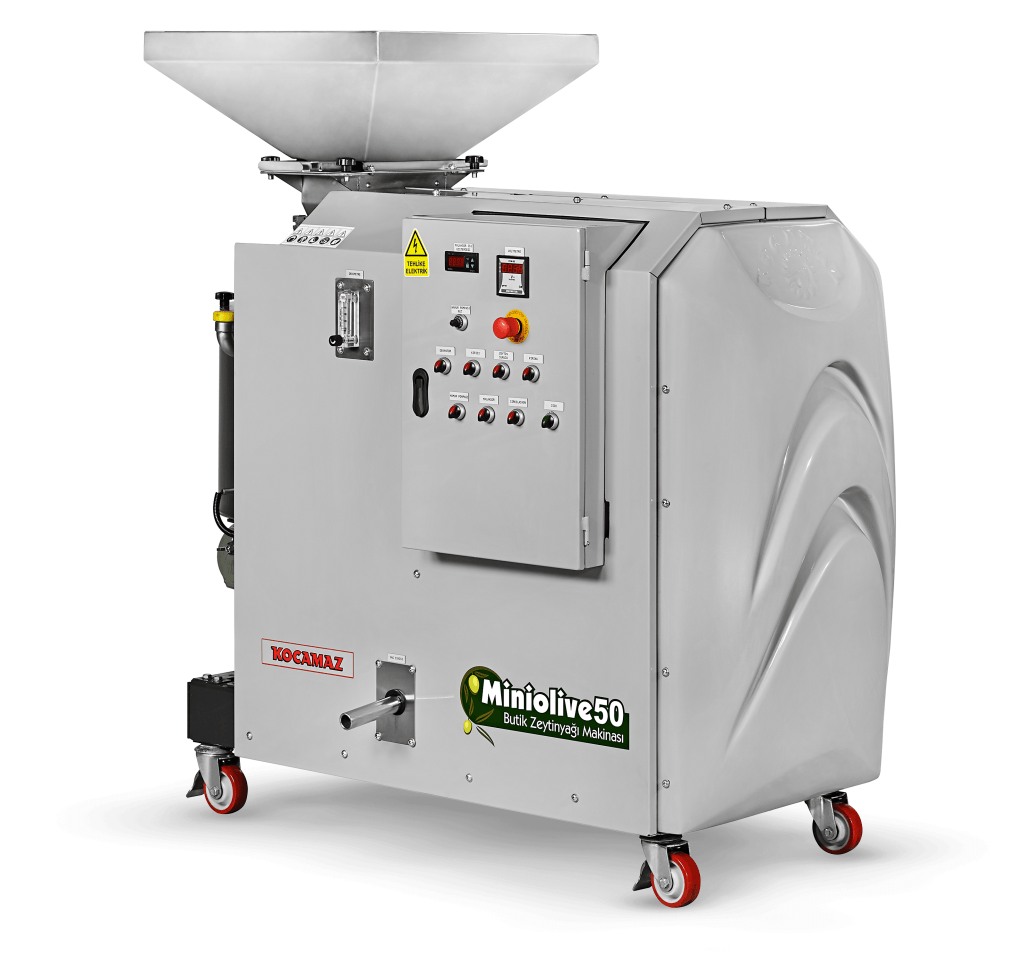

Compact olive oil extraction machine 40-50 kg/h

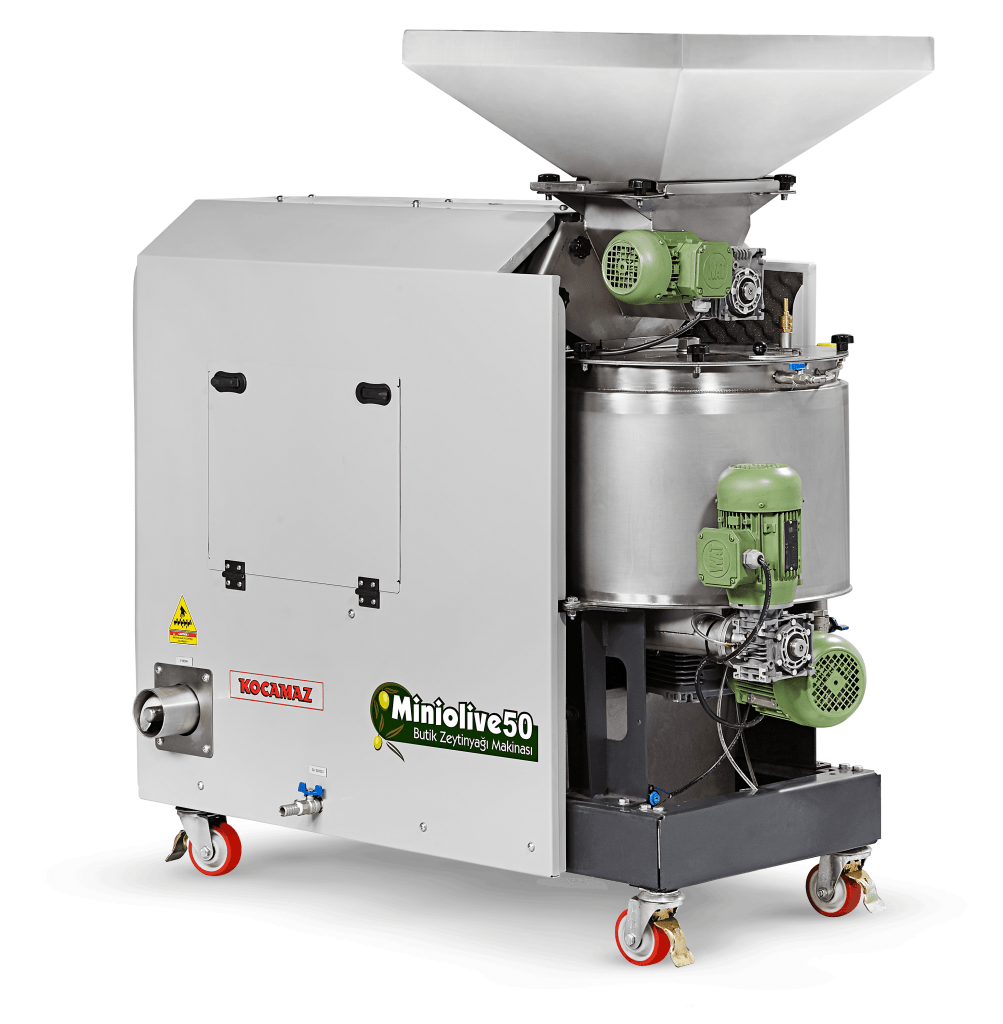

Compact olive oil extraction machine 40-50 kg/h alternate view
Compact olive oil extraction machine 40-50 kg/h alternate view

Miniolive 50 PROF

TECHNICAL SPECIFICATIONS • Capacity: 40–50 kg/h • Weight: 420 kg • Dimensions: 960 x 1,700 x 1,560 mm • Approx. power consumption: 4.5 kW/h • Installed power: 7.38 kW, 380 V; 50 Hz or 6.68 kW, 220 V; 50 Hz • Control panel: Automated • Paste heating: Included, 18–27 C operating range • Material: AISI 304 stainless steel • Malaxer capacity: 65 kg

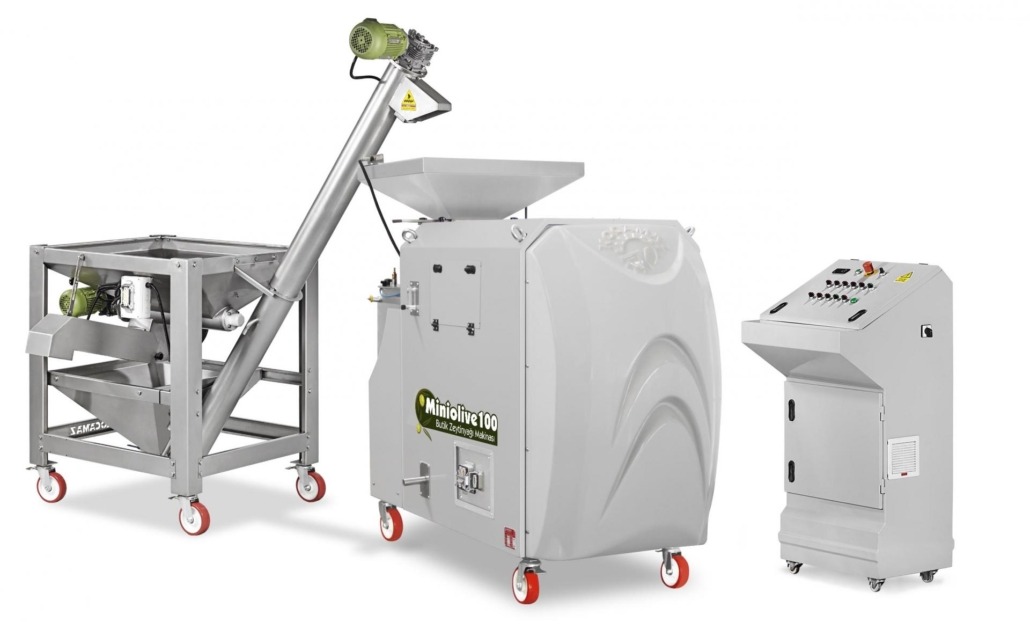

Olive oil extraction system 80-100 kg/h

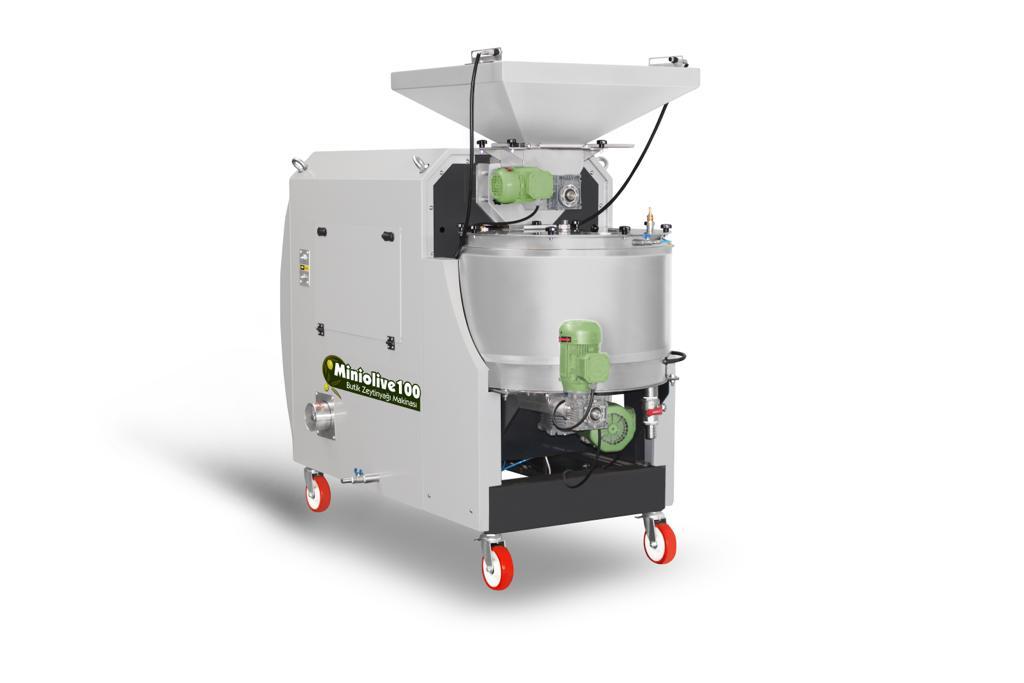

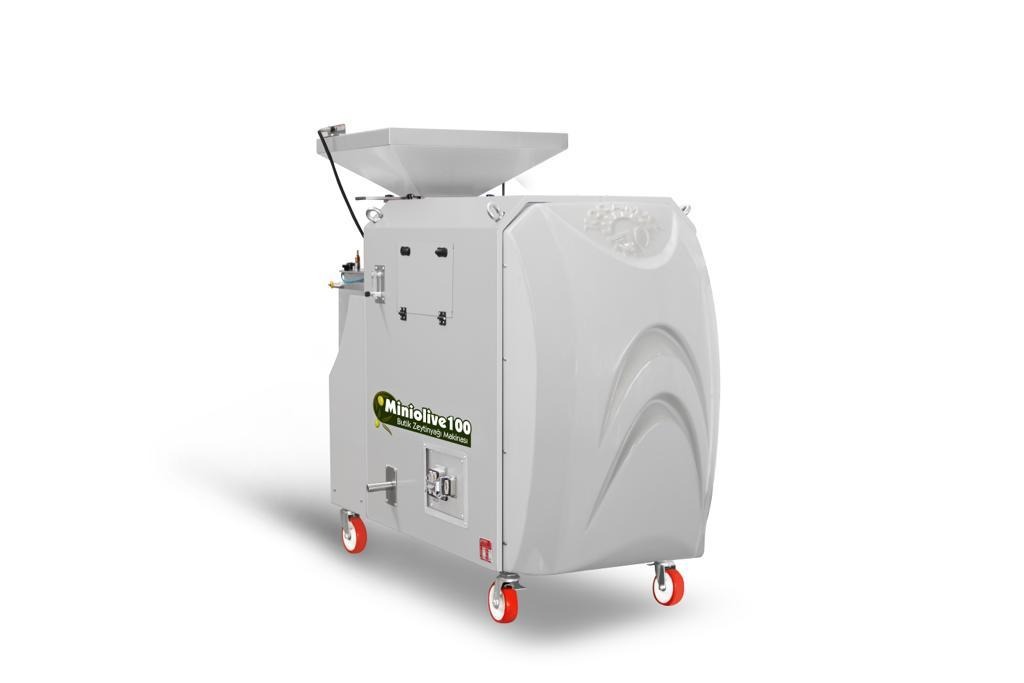

Olive oil extraction system 80-100 kg/h alternate view
Olive oil extraction system 80-100 kg/h alternate view
Olive oil extraction system 80-100 kg/h equipment view
Olive oil extraction system 80-100 kg/h equipment view

Miniolive 100

TECHNICAL SPECIFICATIONS • Extraction capacity: 80–100 kg/h • Extraction unit: 574 kg, 900 x 1,960 x 1,680 mm, 9.02 kW • Washing & defoliation unit: 150–200 kg/h, 155 kg, 920 x 2,000 x 2,300 mm, 1.09 kW • Control panel: 73 kg, 600 x 700 x 1,250 mm • Total installed power: 10.11 kW, 380 V • Approx. consumption: 5.9 kW/h • Product-contact material: AISI 304 stainless steel • Malaxer capacity: 130 kg olive paste

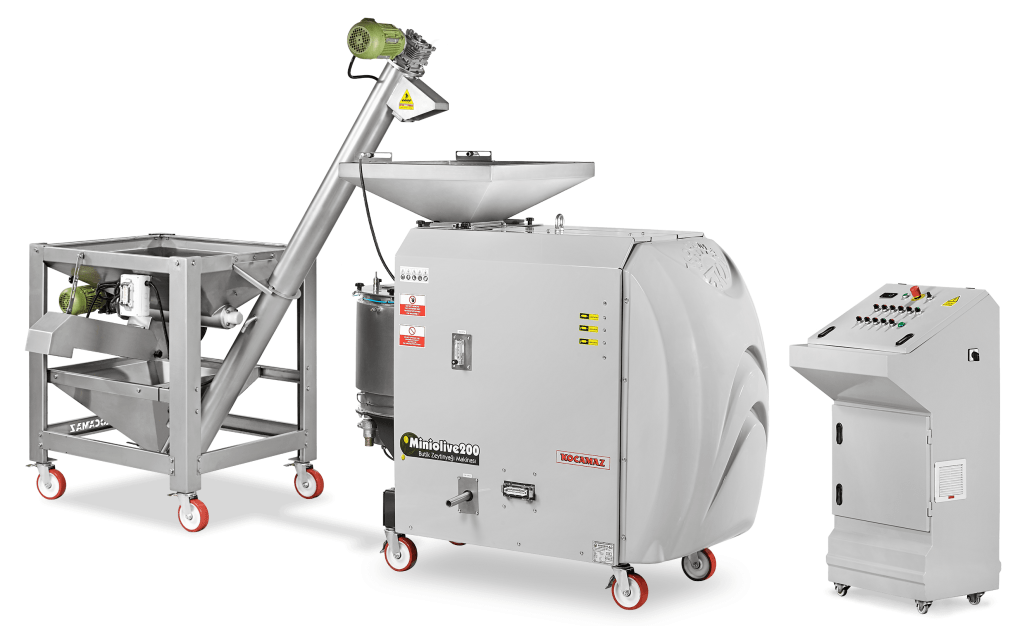

200 kg/h compact olive oil production line

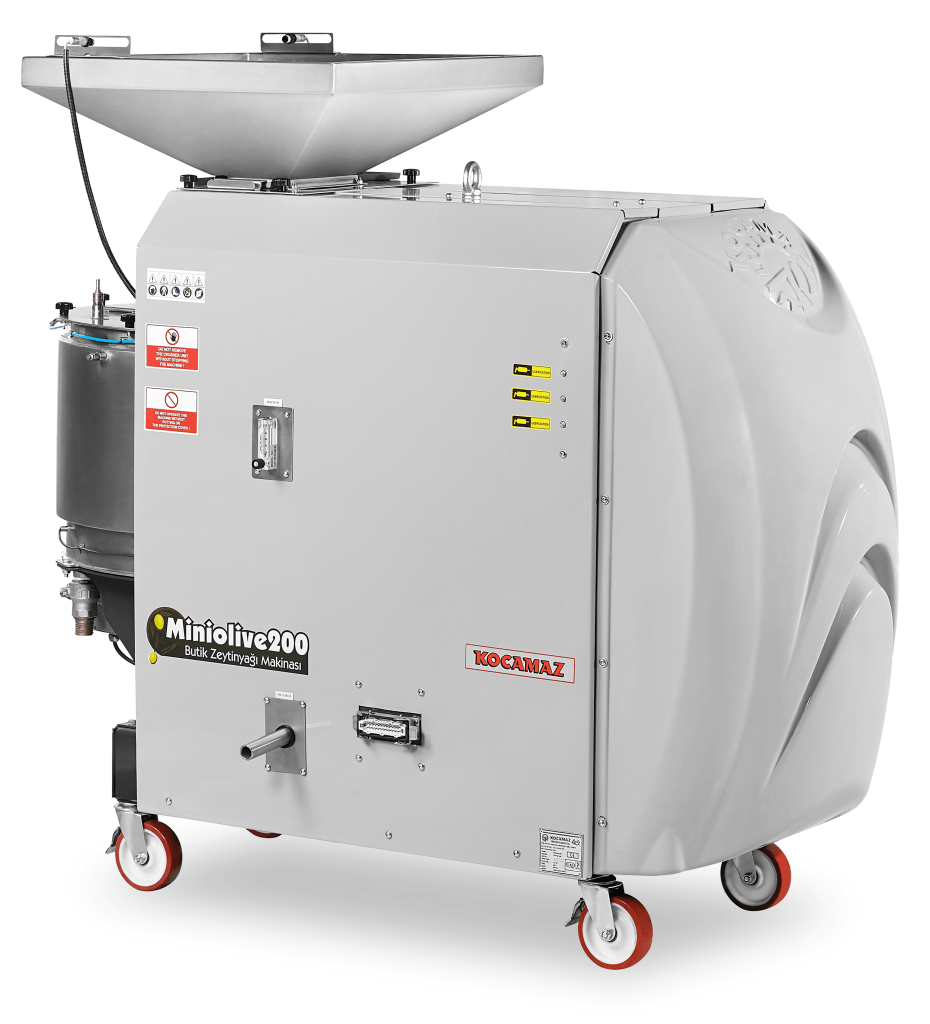

Miniolive 200 EKO olive oil machinery view
Miniolive 200 EKO cold extraction machinery
Miniolive 200 EKO olive processing system

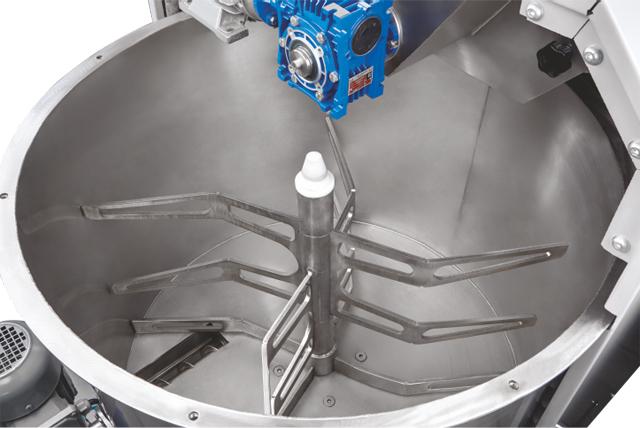

Miniolive 200 EKO complete olive oil line

Miniolive 200 EKO

TECHNICAL SPECIFICATIONS • Capacity: 150–200 kg/h • Extraction unit: 600 kg, 820 x 2,200 x 1,800 mm, 7.62 kW • Washing & defoliation unit: 155 kg, 920 x 2,000 x 2,300 mm, 1.09 kW • Control panel: 73 kg, 600 x 700 x 1,250 mm • Total installed power: 8.71 kW, 380 V; 50 Hz • Approx. consumption: 4.7 kW/h • Product-contact construction: AISI 304 stainless steel
200 kg/h olive oil production line
200 kg/h olive oil extraction machinery
Professional compact olive oil production line

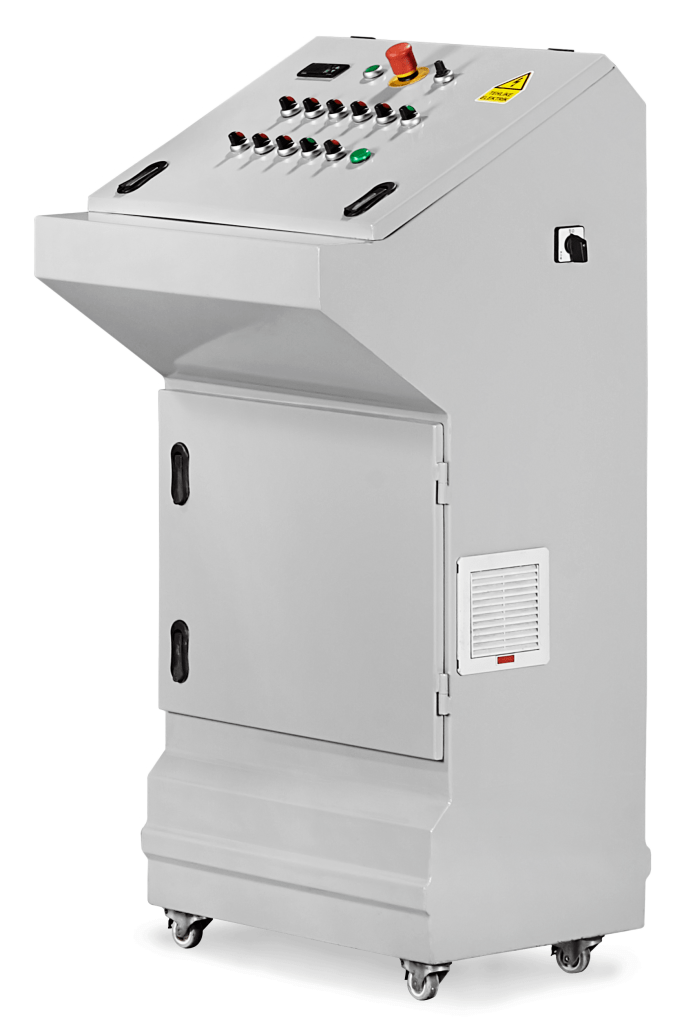

Olive washing and extraction equipment 200 kg/h

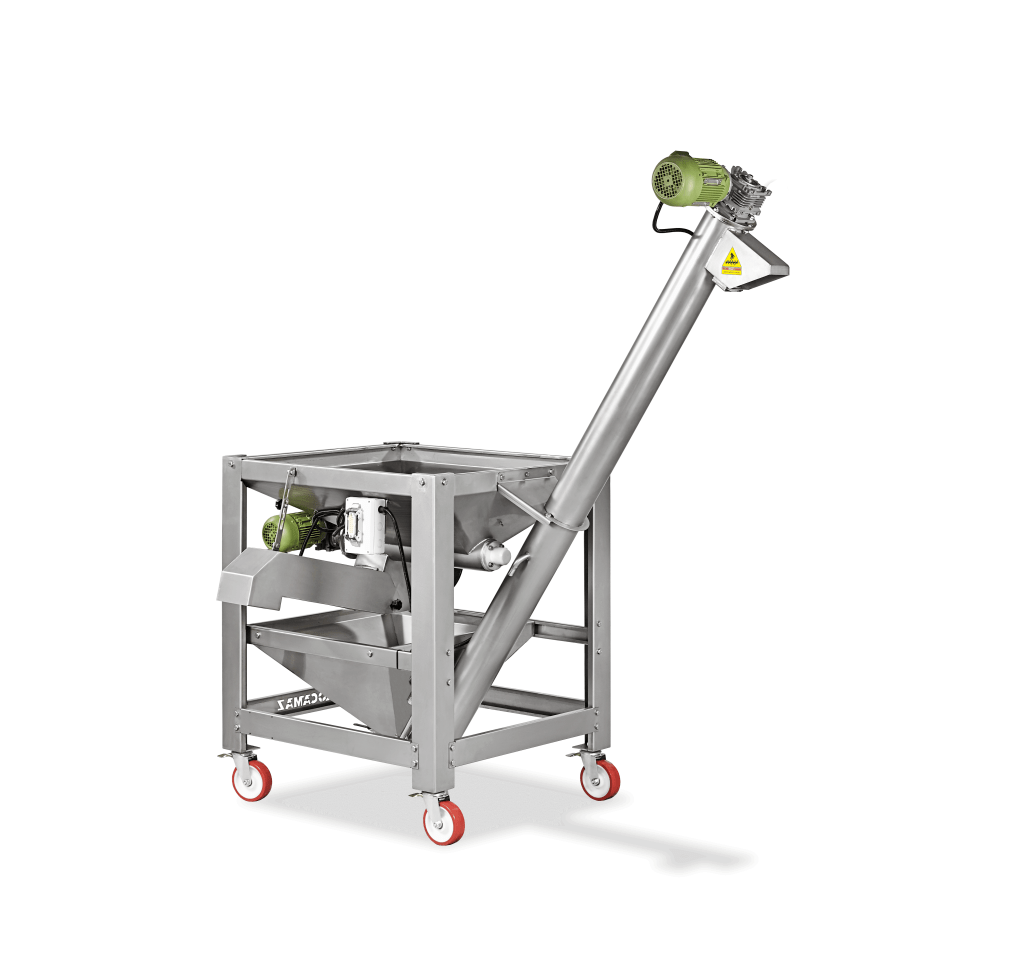

Stainless steel olive oil machinery 200 kg/h

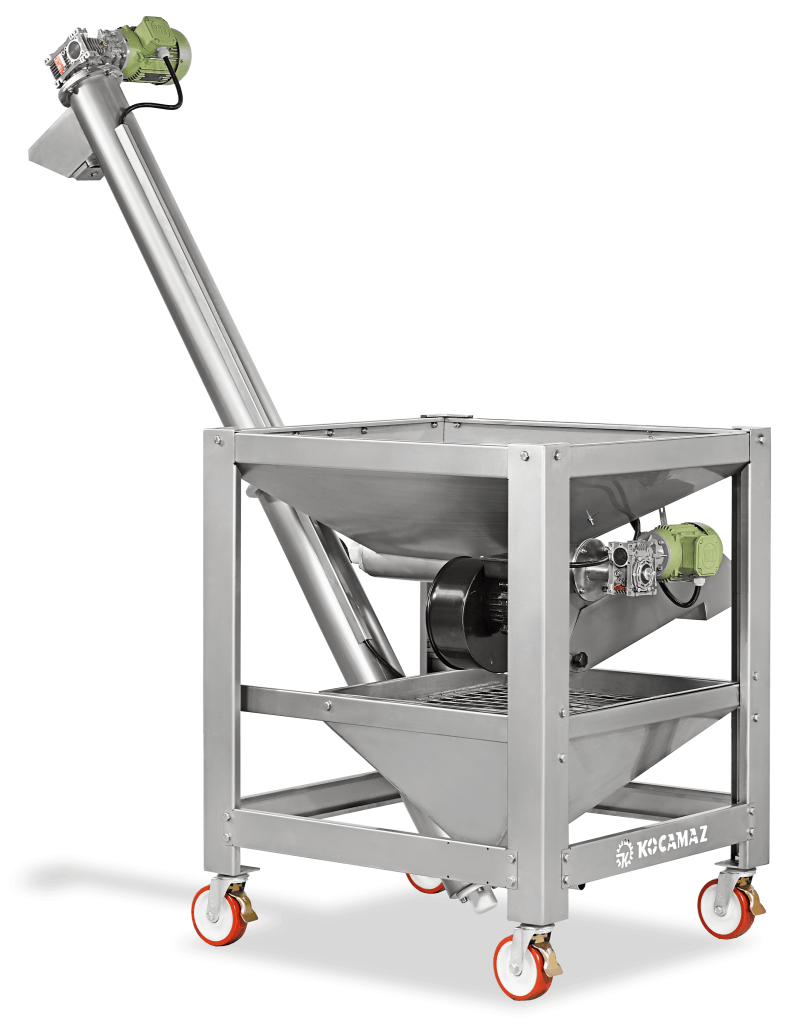

Boutique olive oil machinery system 200 kg/h

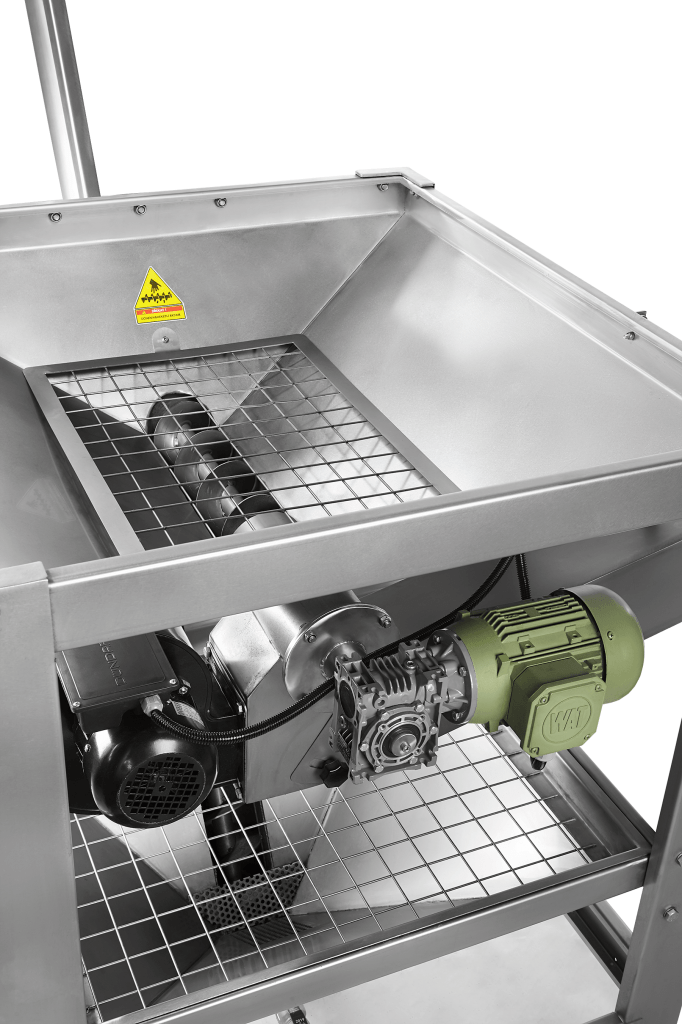

Complete 200 kg/h olive oil processing system

Miniolive 200 PROF

TECHNICAL SPECIFICATIONS • Capacity: 150–200 kg/h • Extraction unit: 650 kg, 820 x 2,300 x 1,800 mm, 10.72 kW • Washing & defoliation unit: 170 kg, 920 x 2,000 x 2,300 mm, 1.46 kW inverter-controlled • Control panel: 73 kg, 600 x 700 x 1,250 mm • Total installed power: 12.18 kW, 380 V • Approx. consumption: 6 kW • Material: AISI 304 stainless steel • Malaxer heating: Standard, 18–27 C • Cycloid gearbox decanter

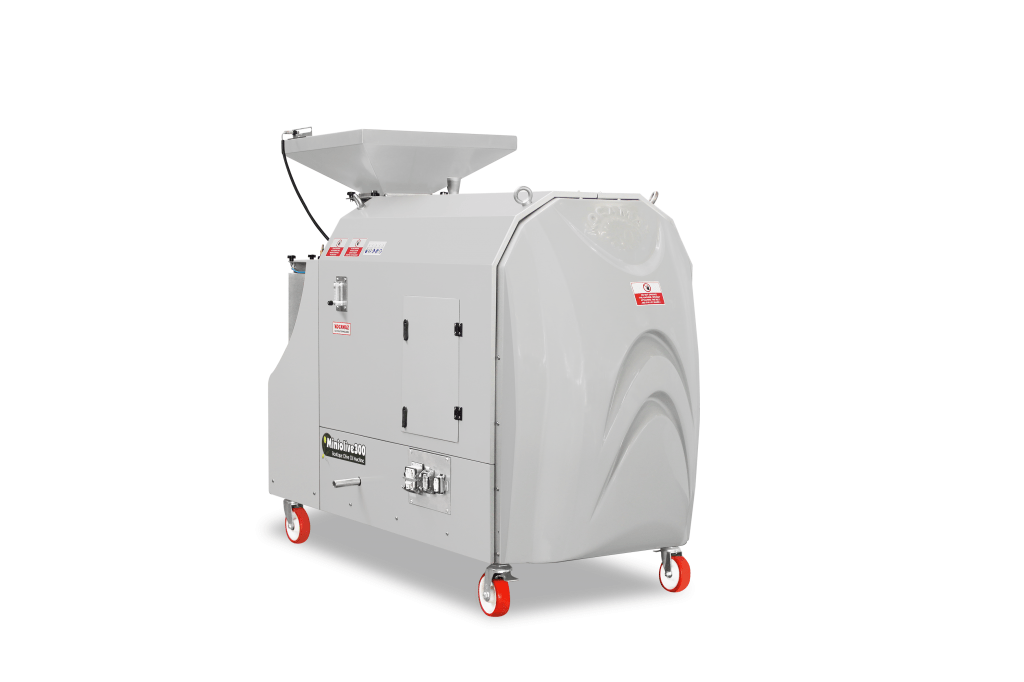

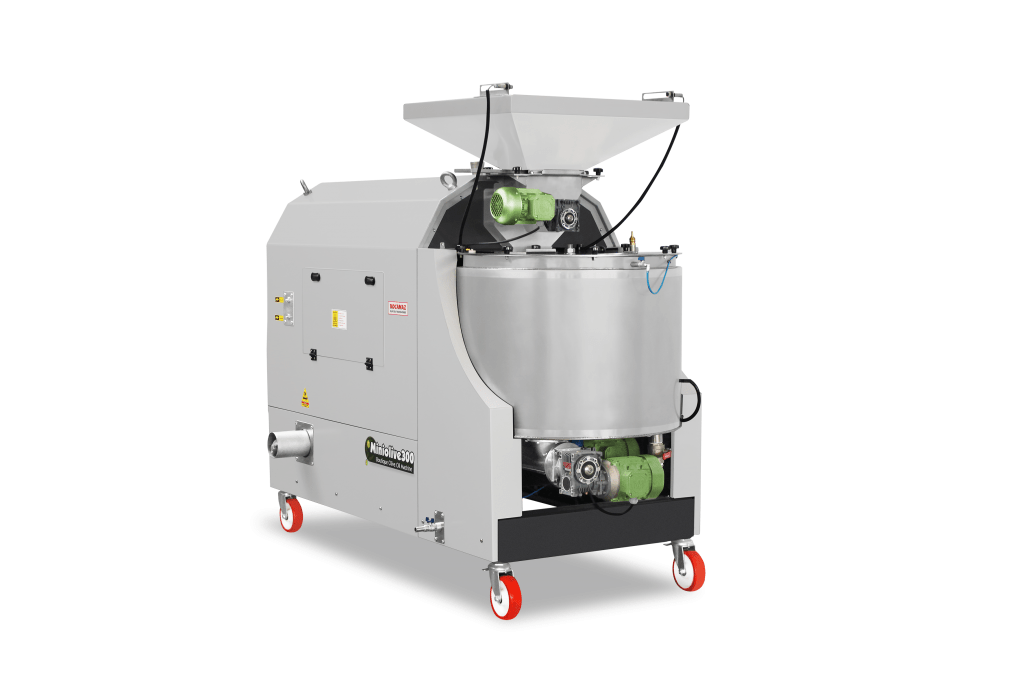

Miniolive 300 olive oil production line
Miniolive 300 olive oil production line
Miniolive 300 olive oil production line
Miniolive 300 olive oil production line
Miniolive 300 olive oil production line
Miniolive 300 olive oil production line

Miniolive 300

TECHNICAL SPECIFICATIONS • Capacity: 250–300 kg/h • Dimensions: 960 x 2,600 x 1,870 mm • Weight: 850 kg • Installed power: 12 kW, 380 V; 50 Hz • Decanter speed: 4,189 rpm • Decanter: AISI 304 stainless steel, cycloid gearbox • Malaxer: Vertical, 300 kg olive paste, AISI 304 stainless steel • Malaxer heating: Included, 18–27 C • Control panel: 600 x 1,000 x 1,250 mm, 114 kg, 380–400 V, 24 V command voltage • Approx. consumption: 8 kW

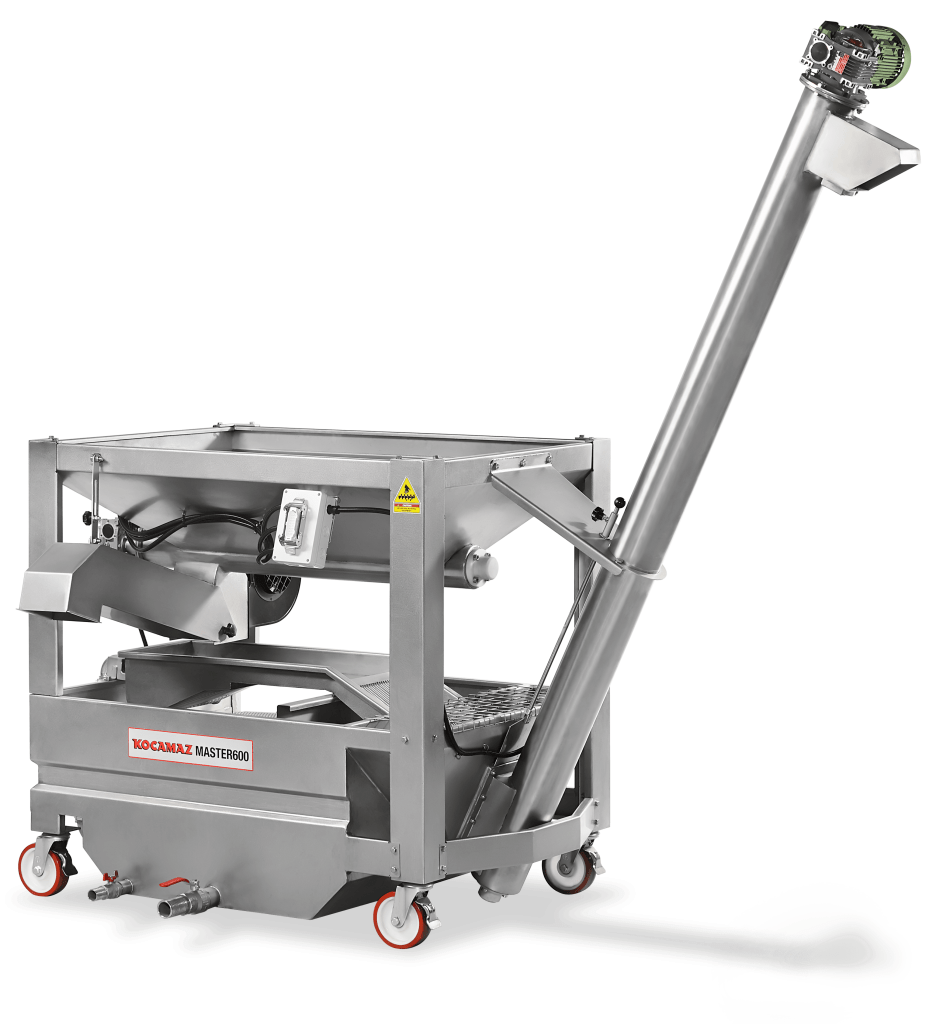

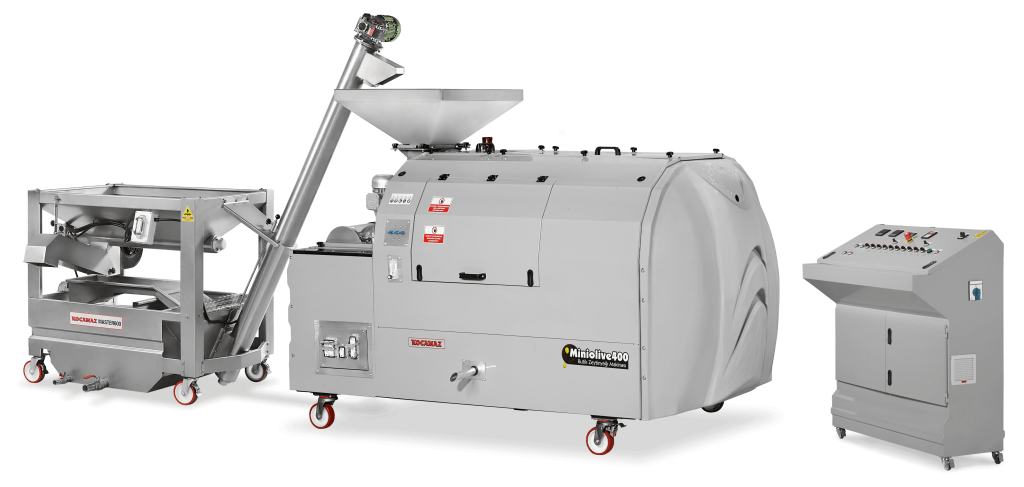

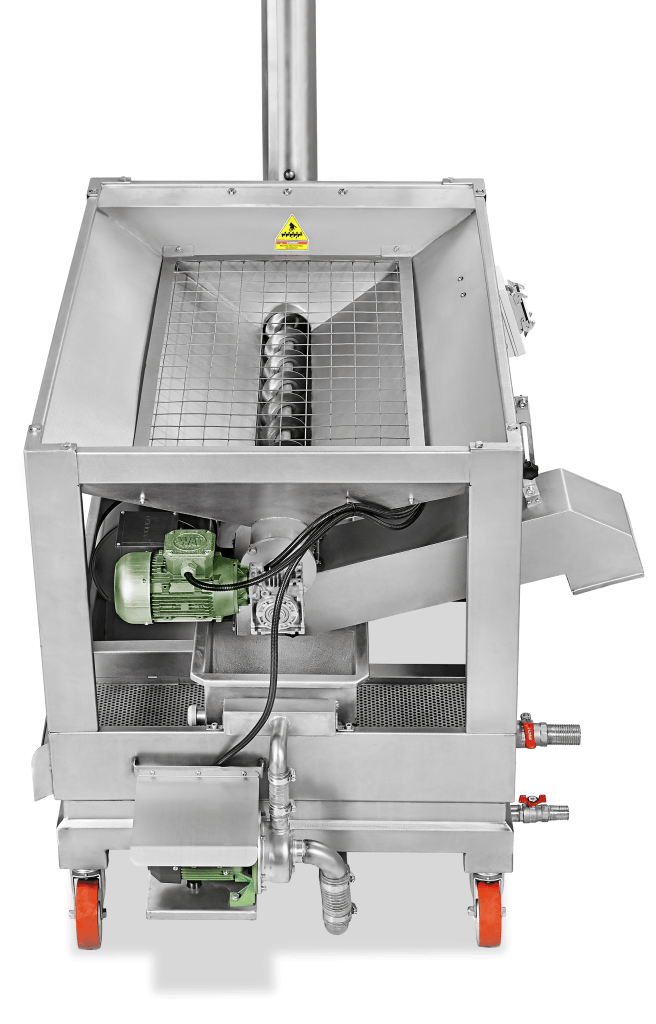

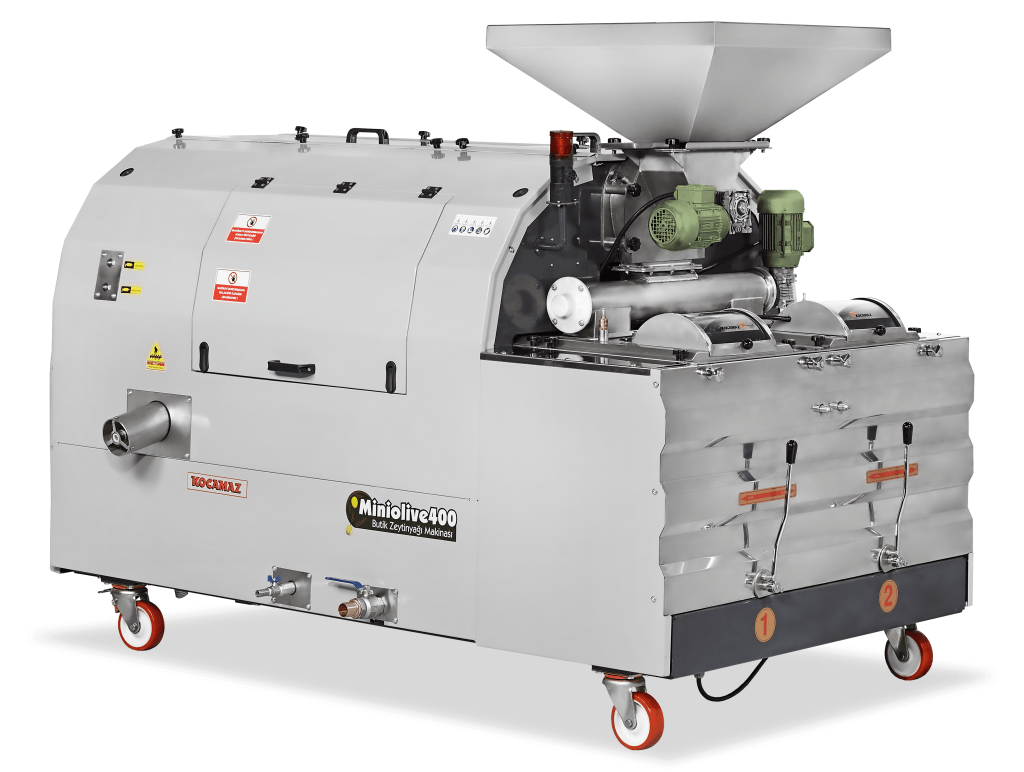

AL AFANDY Miniolive 400 olive oil line
AL AFANDY Miniolive 400 olive oil line
AL AFANDY Miniolive 400 olive oil line
AL AFANDY Miniolive 400 olive oil line
AL AFANDY Miniolive 400 olive oil line
AL AFANDY Miniolive 400 olive oil line

Miniolive 400

350–400 kg/h • Boutique olive oil production system • Cold extraction technology

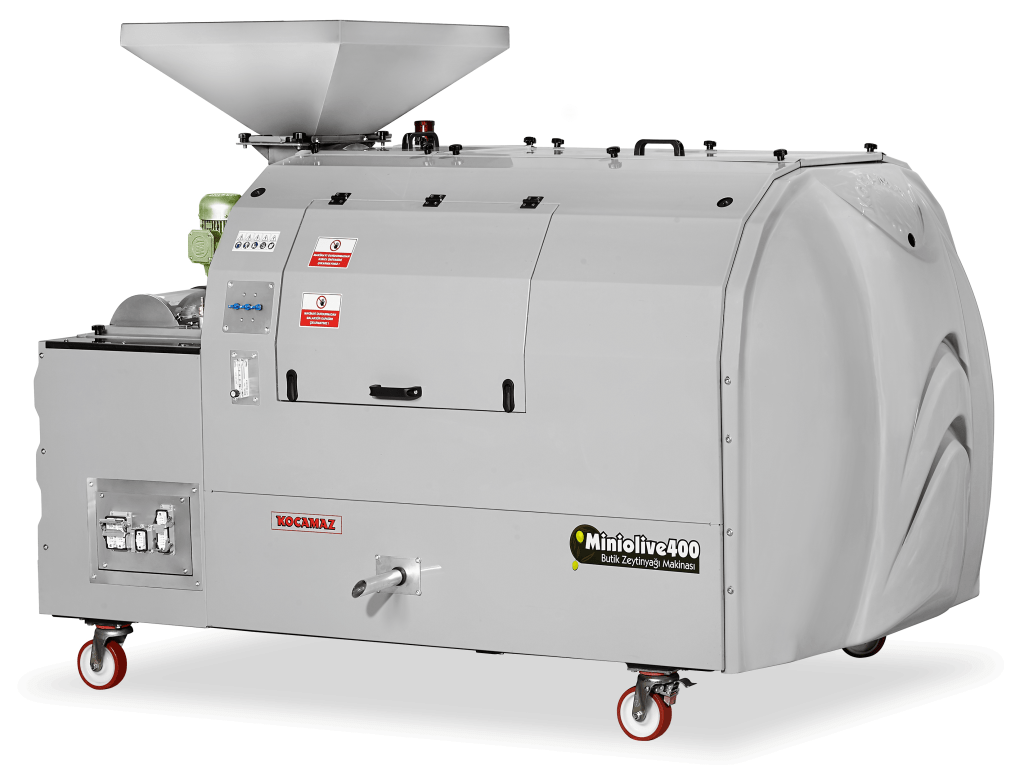

AL AFANDY Miniolive 400 PROF olive oil line
AL AFANDY Miniolive 400 PROF olive oil line
AL AFANDY Miniolive 400 PROF olive oil line
AL AFANDY Miniolive 400 PROF olive oil line
AL AFANDY Miniolive 400 PROF olive oil line
AL AFANDY Miniolive 400 PROF olive oil line
AL AFANDY Miniolive 400 PROF olive oil line

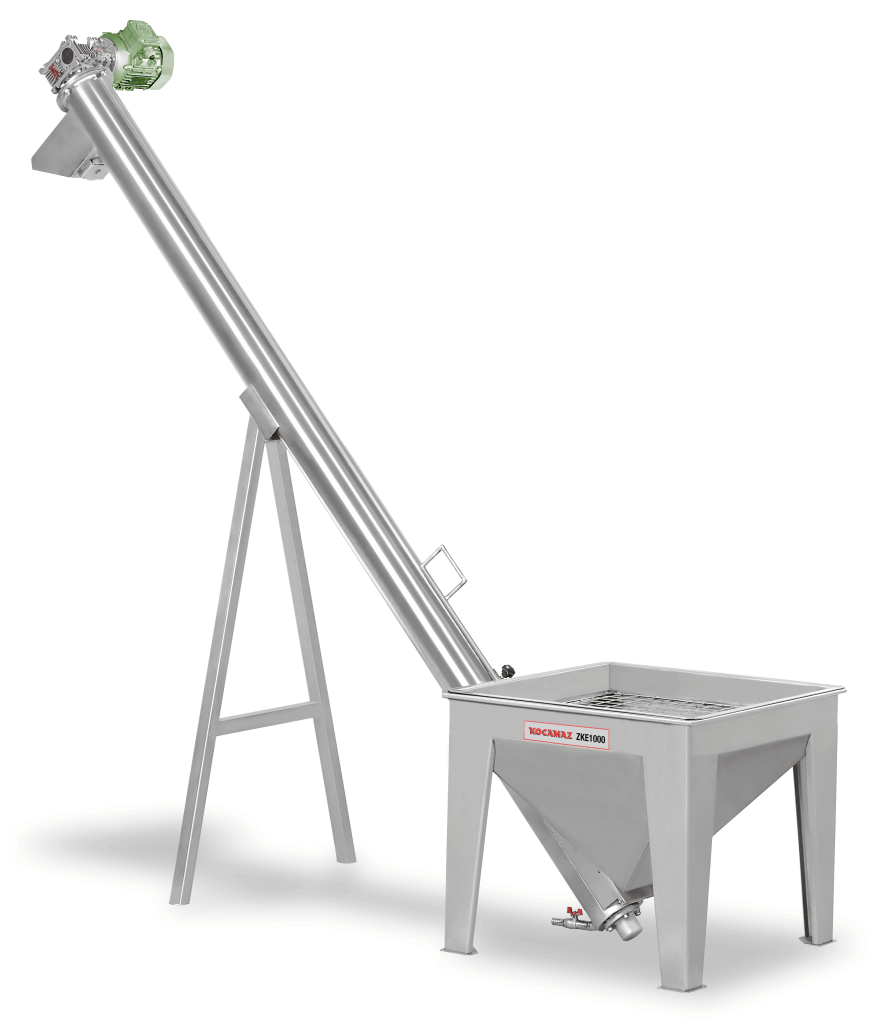

AL AFANDY Miniolive 400 PROF olive oil line

Miniolive 400 PROF

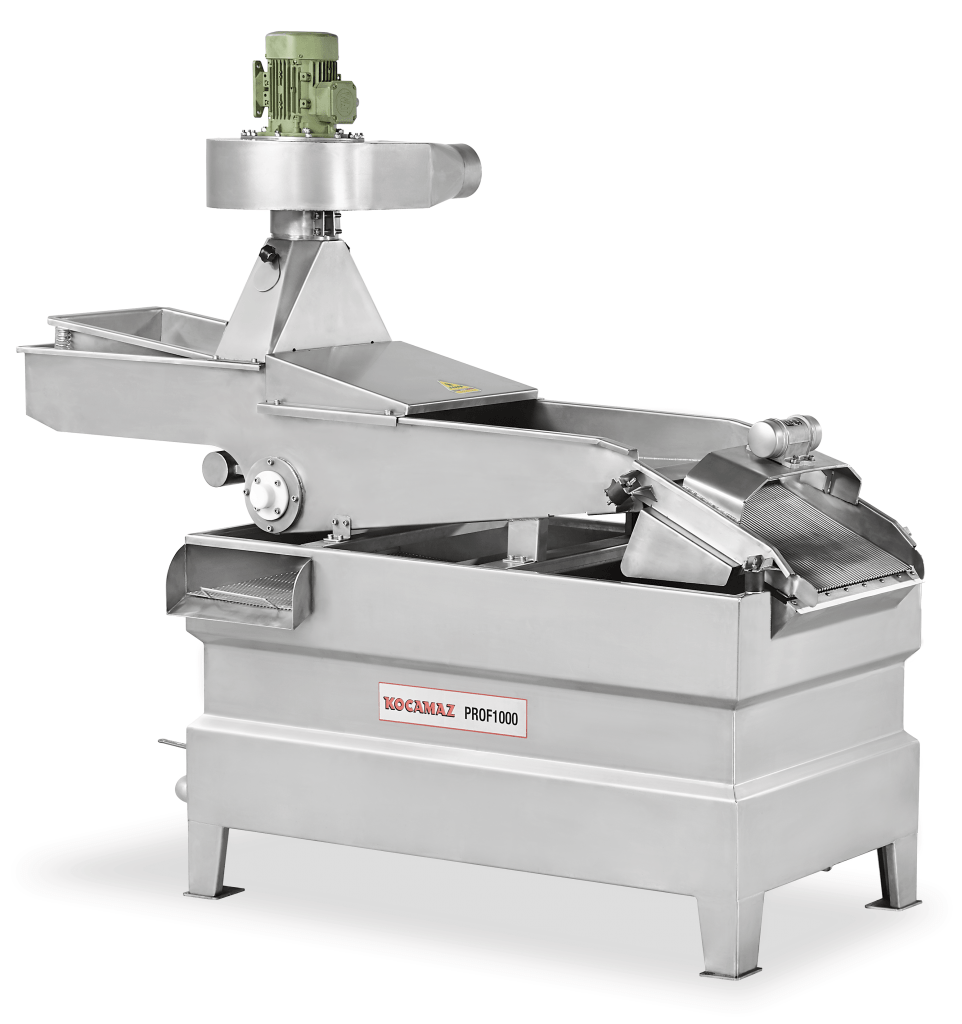

350–400 kg/h • Complete 5-equipment professional line • Extraction unit • ZTB 1000 food-grade PVC conveyor with leaf aspiration and inverter speed control • PROF 1000 washing & defoliation unit with foreign-body separation • ZKE 1000 crusher elevator • Central control panel • Double malaxer • Automatic malaxer heating, 18–27 °C • Variable paste-processing speed • Cycloid gearbox for higher decanter torque and quieter operation

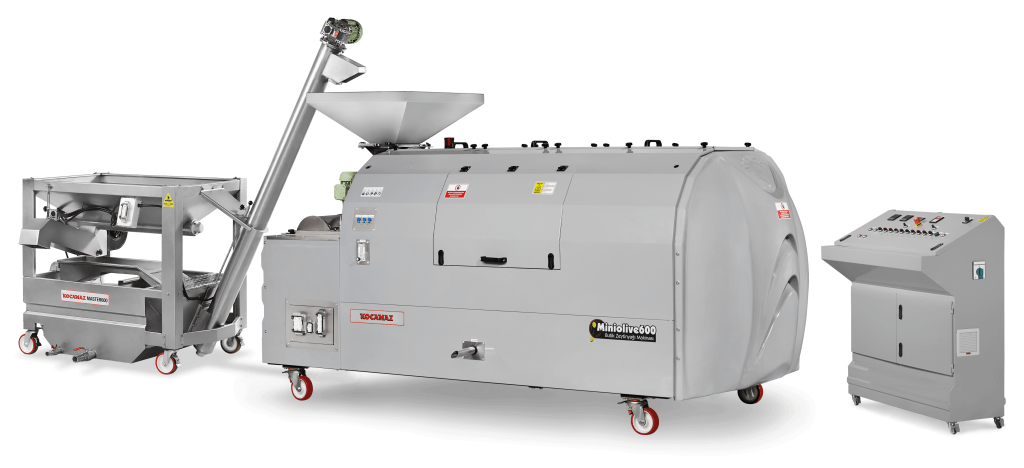

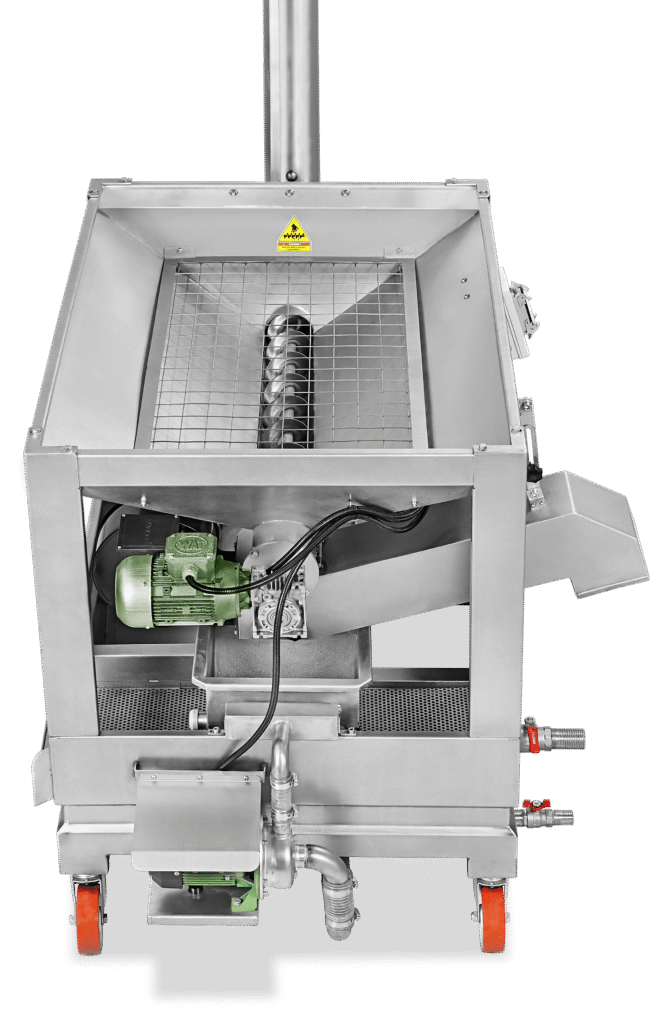

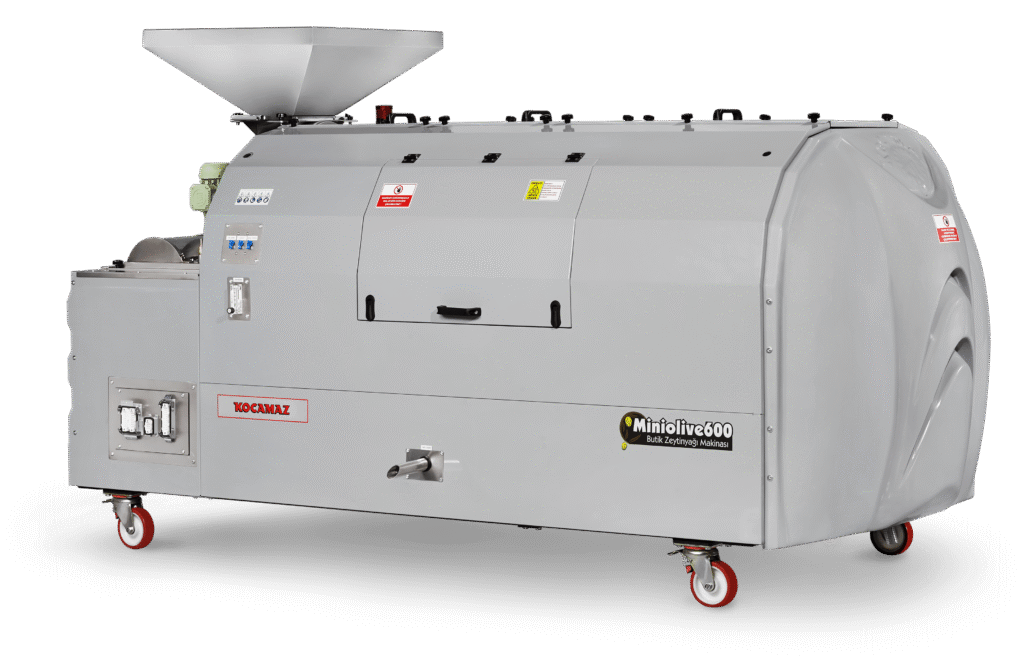

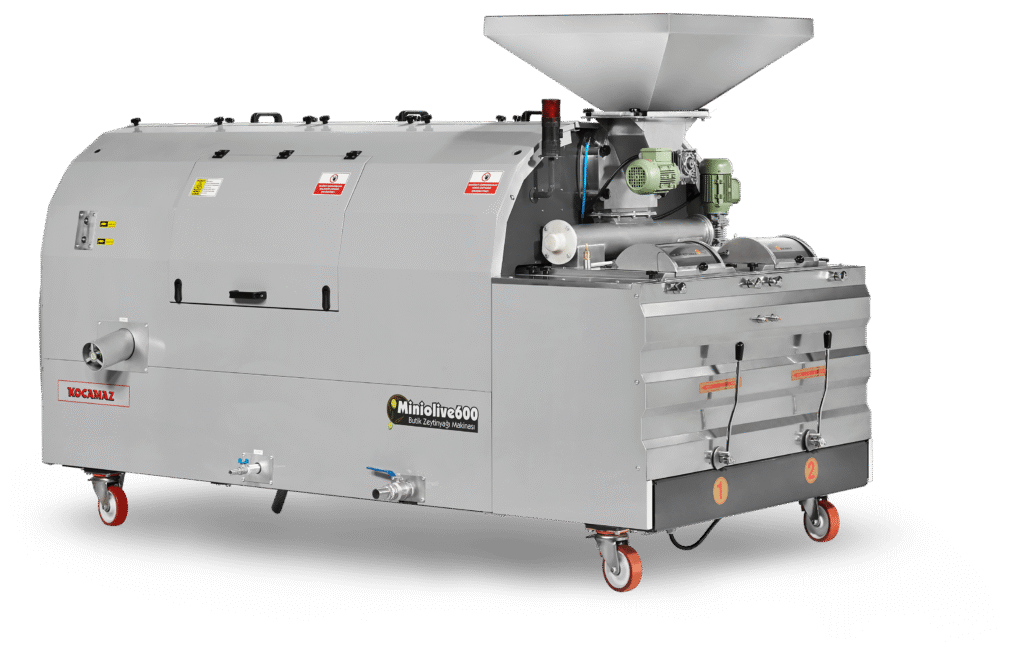

AL AFANDY Miniolive 600 olive oil line
AL AFANDY Miniolive 600 olive oil line
AL AFANDY Miniolive 600 olive oil line
AL AFANDY Miniolive 600 olive oil line

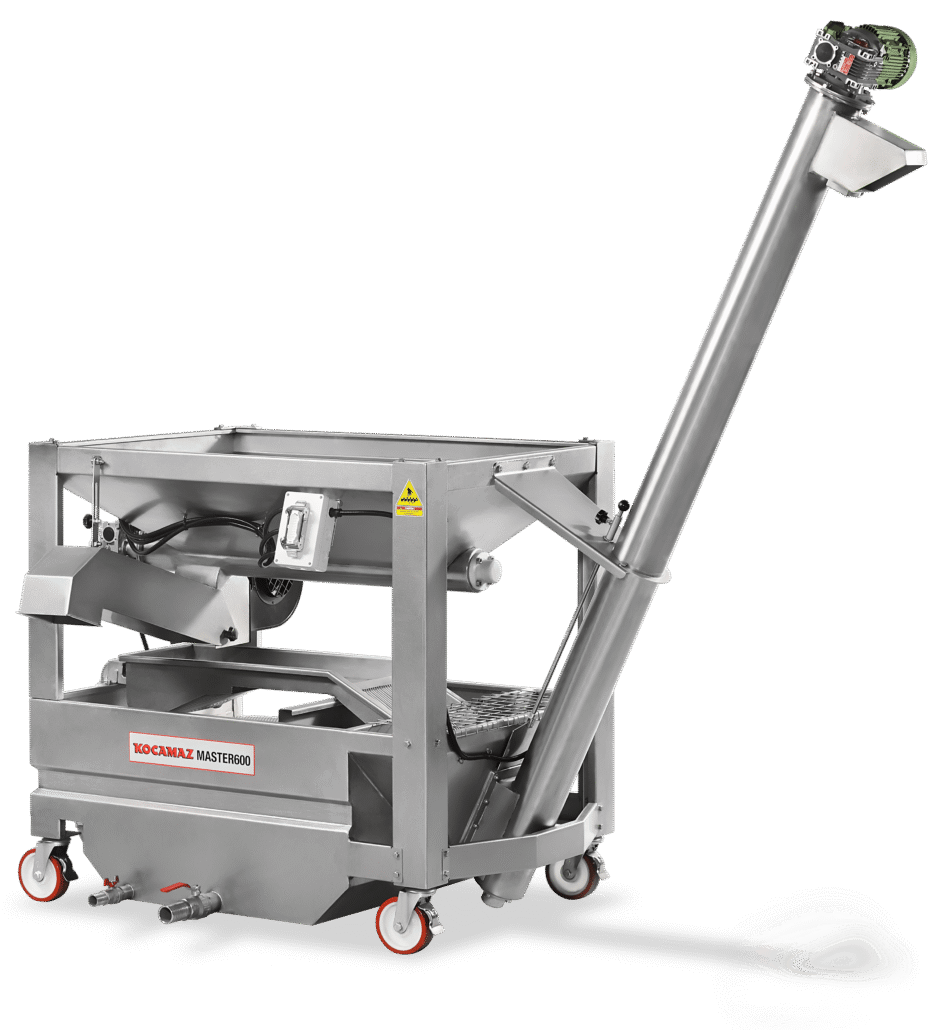

AL AFANDY Miniolive 600 olive oil line
AL AFANDY Miniolive 600 olive oil line

Miniolive 600

550–600 kg/h • AISI 304 stainless steel • Double malaxer, 2 × 320 kg • Malaxer heating included • Installed power 20.70 kW • 380 V / 50 Hz • Approx. electrical consumption 16 kW • Cycloid gearbox decanter • Variable processing speed

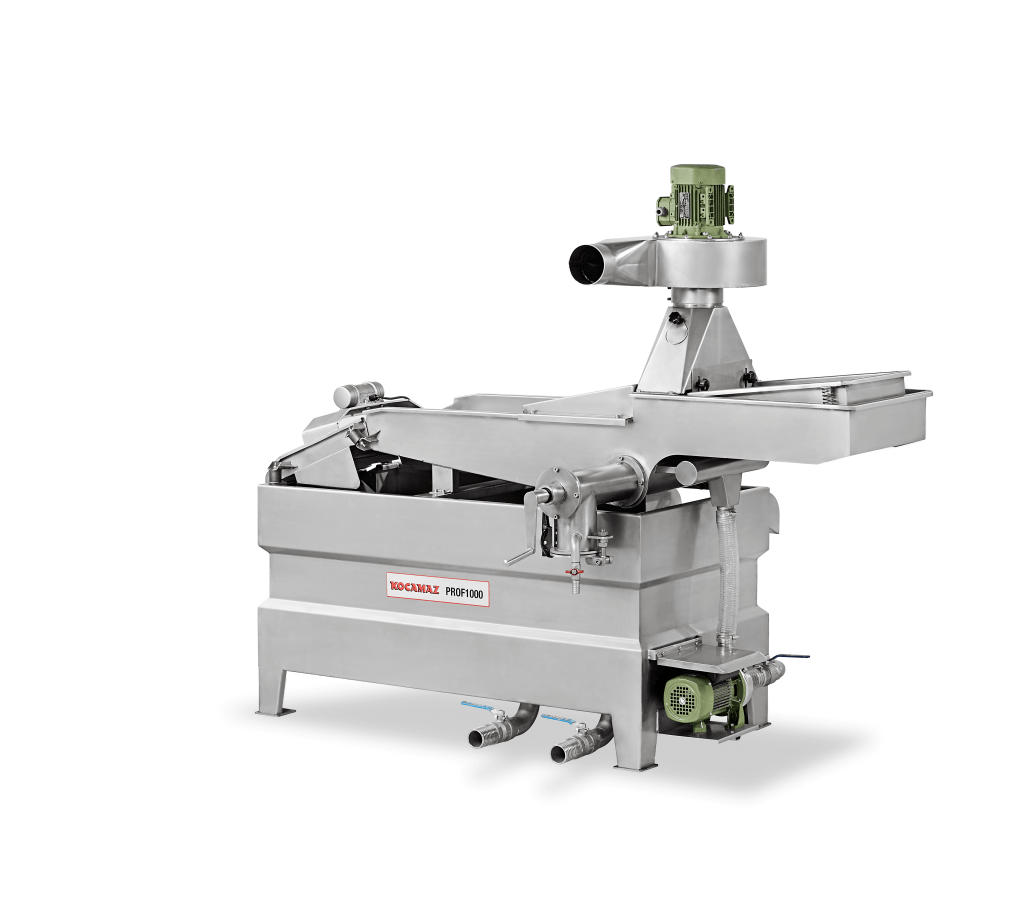

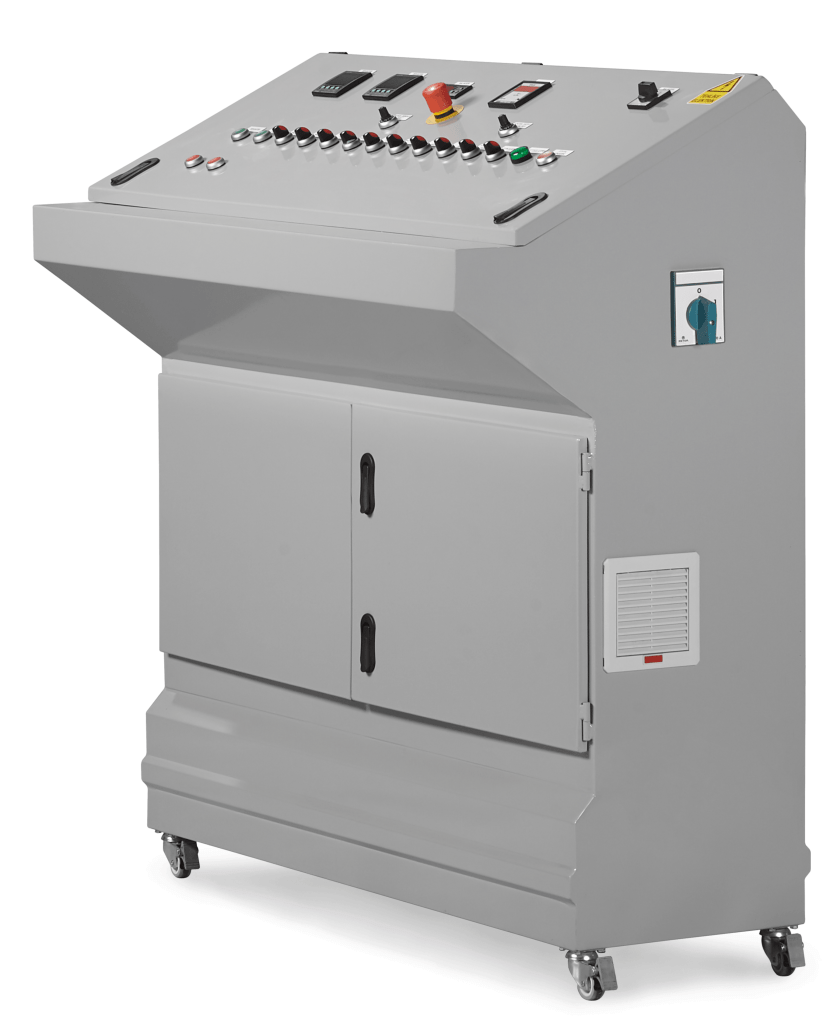

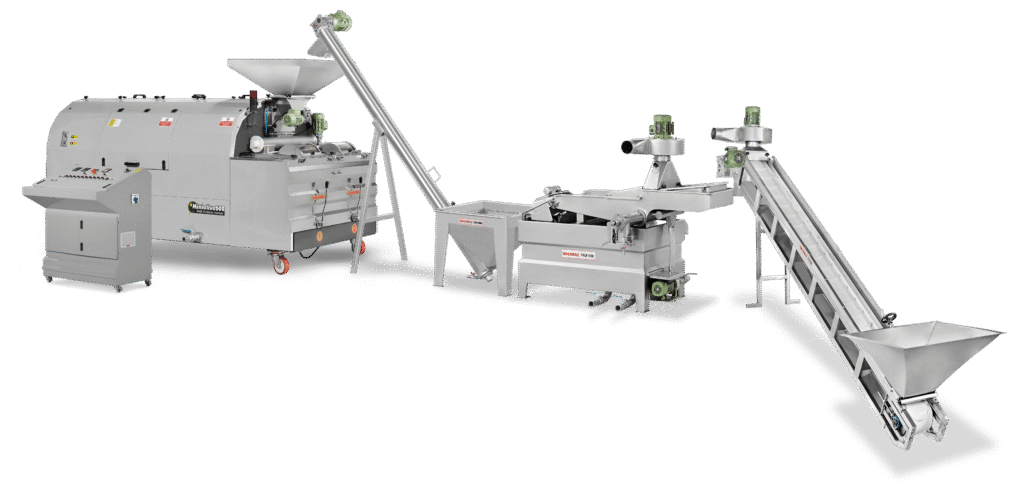

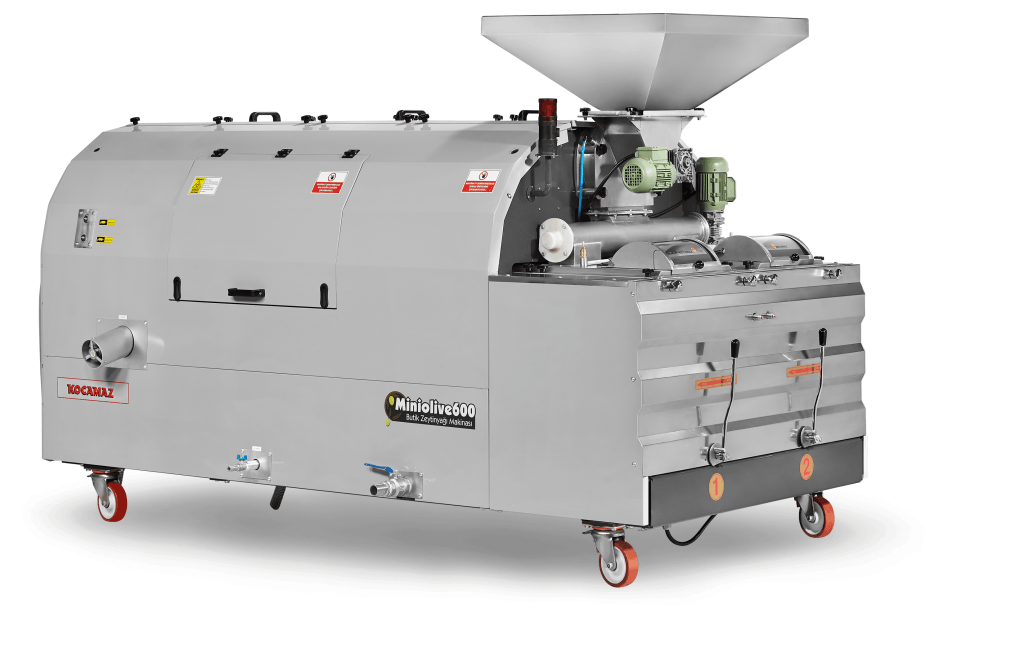

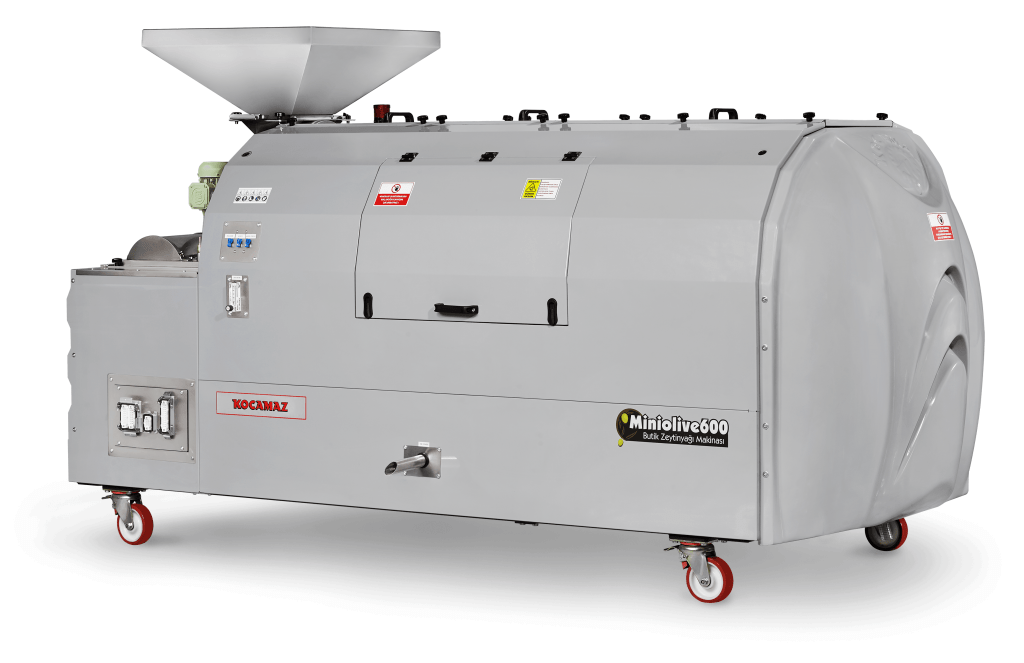

AL AFANDY Miniolive 600 PROF olive oil line
AL AFANDY Miniolive 600 PROF olive oil line
AL AFANDY Miniolive 600 PROF olive oil line
AL AFANDY Miniolive 600 PROF olive oil line

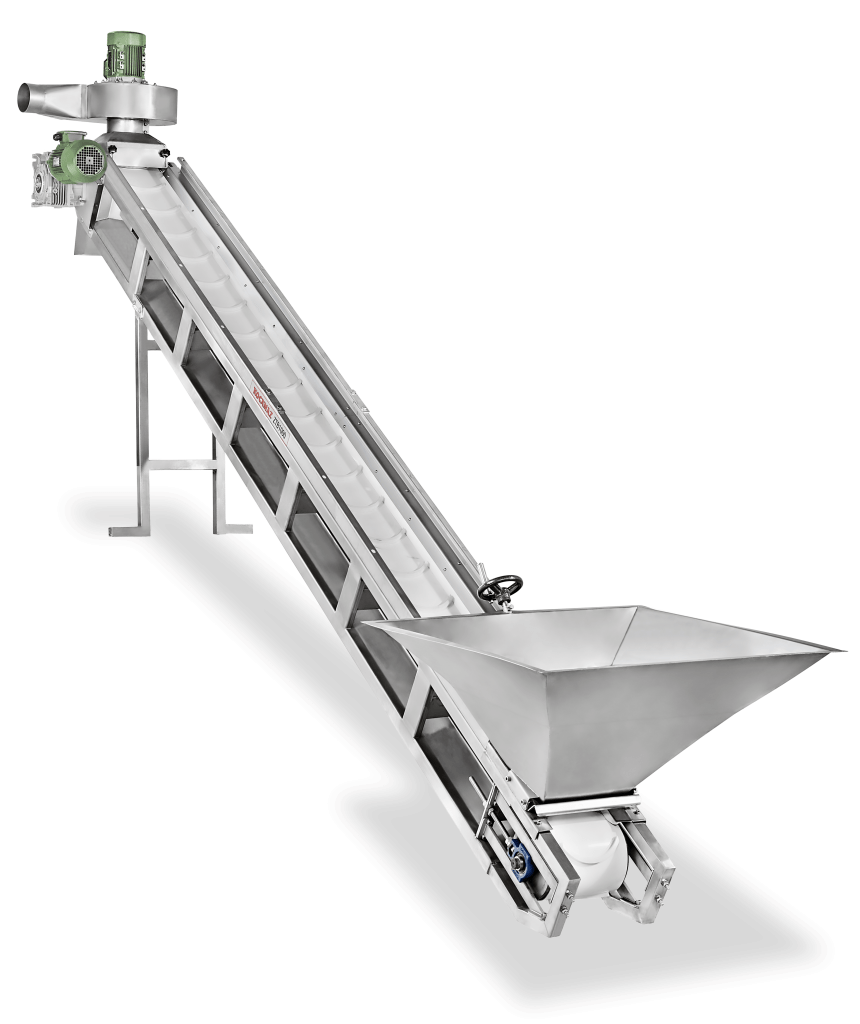

AL AFANDY Miniolive 600 PROF olive oil line
AL AFANDY Miniolive 600 PROF olive oil line
AL AFANDY Miniolive 600 PROF olive oil line

Miniolive 600 PROF

550–600 kg/h • Complete 5-equipment professional line • Extraction unit • ZTB 1000 food-grade PVC conveyor with leaf aspiration and inverter speed control • PROF 1000 washing & defoliation unit with stone/foreign-body separation • ZKE 1000 crusher elevator • Central control panel • Double malaxer for parallel processing • Automatic malaxer heating, 18–27 °C • Variable paste-processing speed • Cycloid gearbox for increased decanter torque and quieter operation

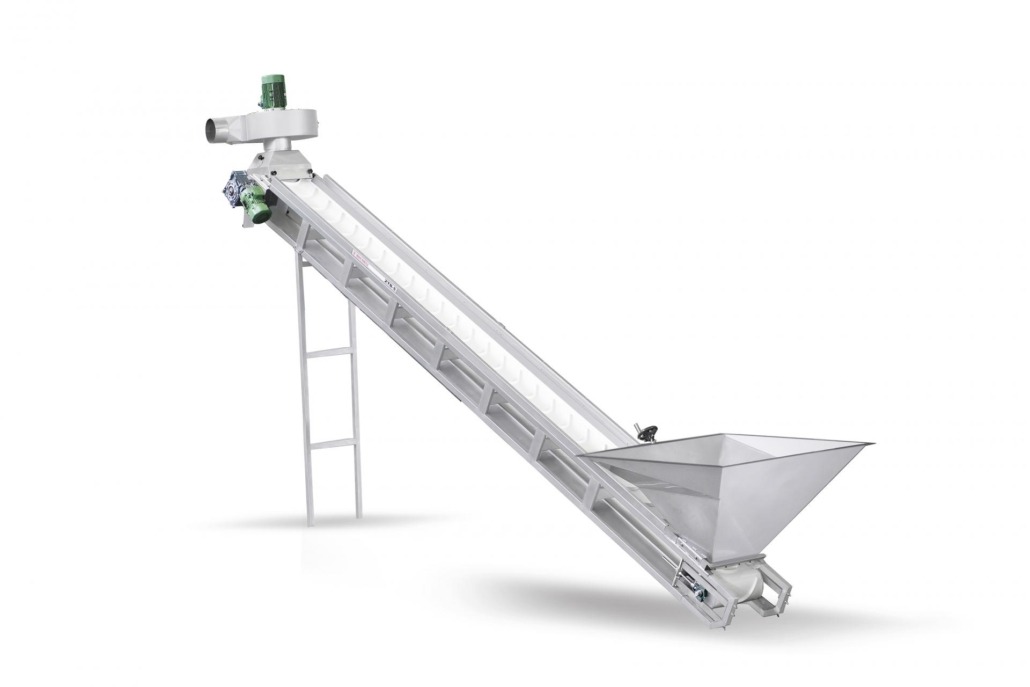

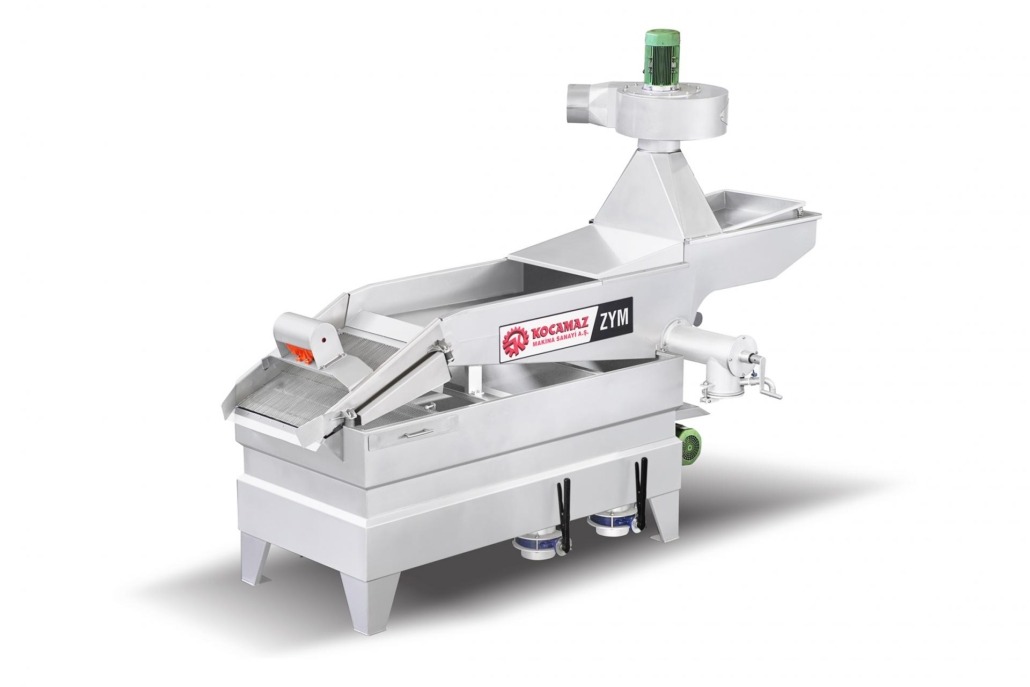

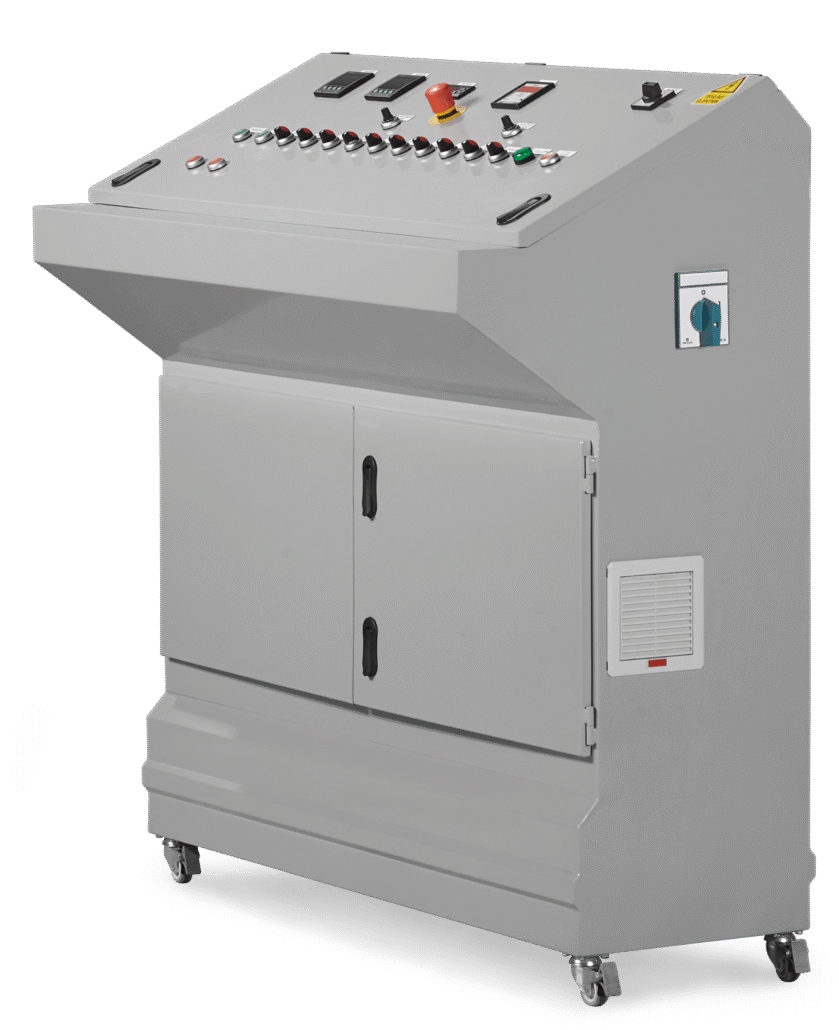

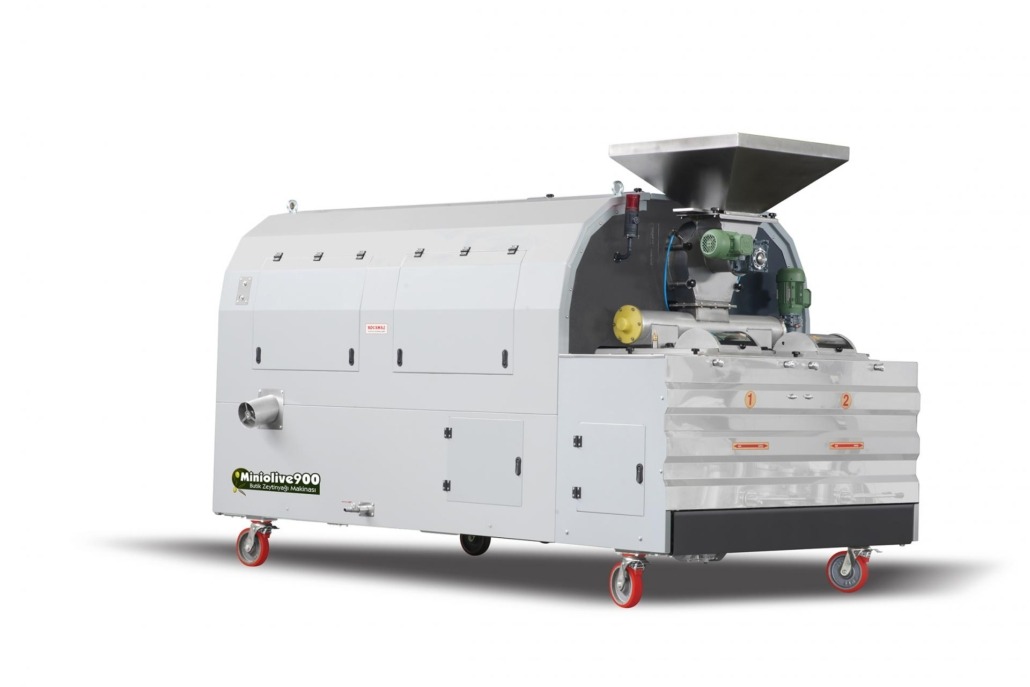

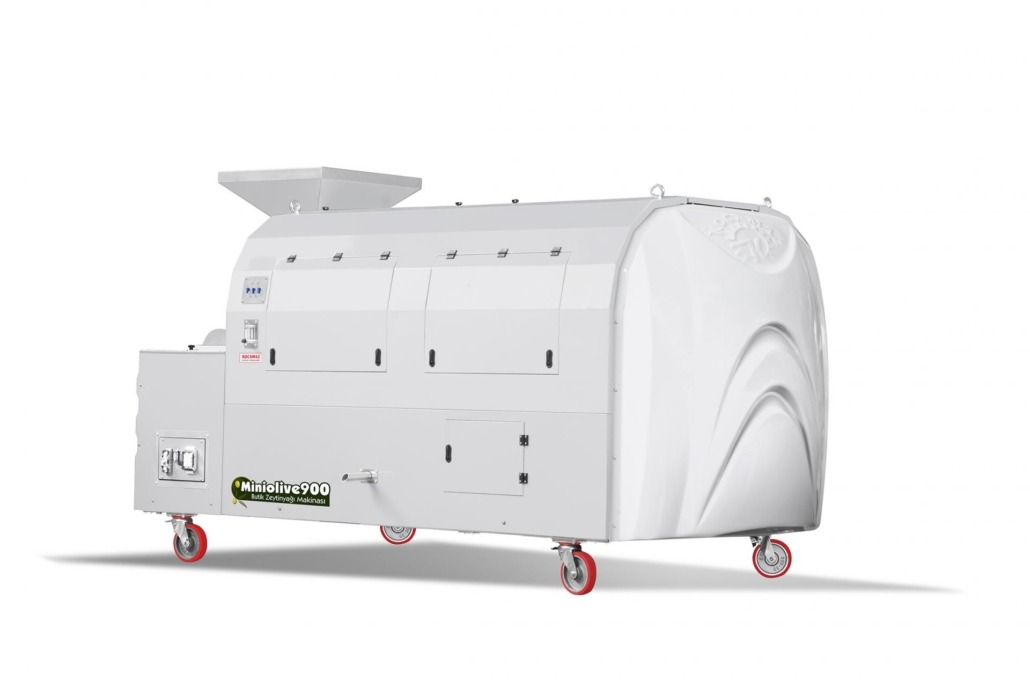

AL AFANDY Miniolive 900 olive oil line
AL AFANDY Miniolive 900 olive oil line
AL AFANDY Miniolive 900 olive oil line
AL AFANDY Miniolive 900 olive oil line
AL AFANDY Miniolive 900 olive oil line
AL AFANDY Miniolive 900 olive oil line
AL AFANDY Miniolive 900 olive oil line

Miniolive 900

800–900 kg/h • Professional high-capacity olive oil line • 5-unit configuration: extraction unit, olive conveyor, washing & defoliation, crusher elevator and central control panel • Designed for high daily processing tonnage

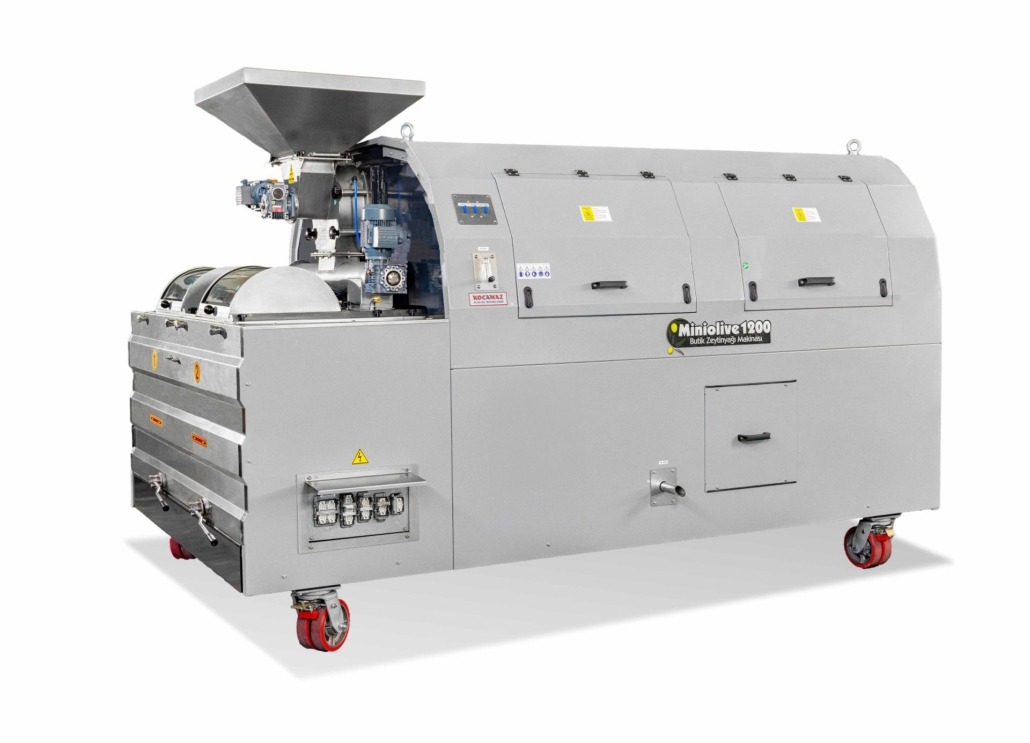

خط إنتاج زيت الزيتون الصناعي - ماكينة عصر الزيتون

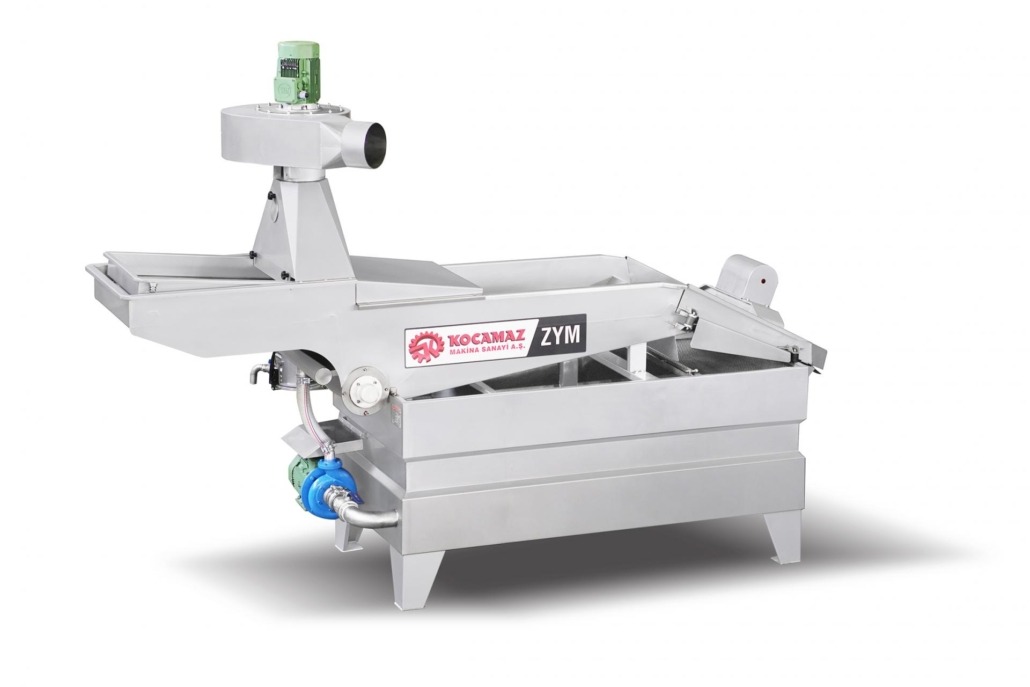

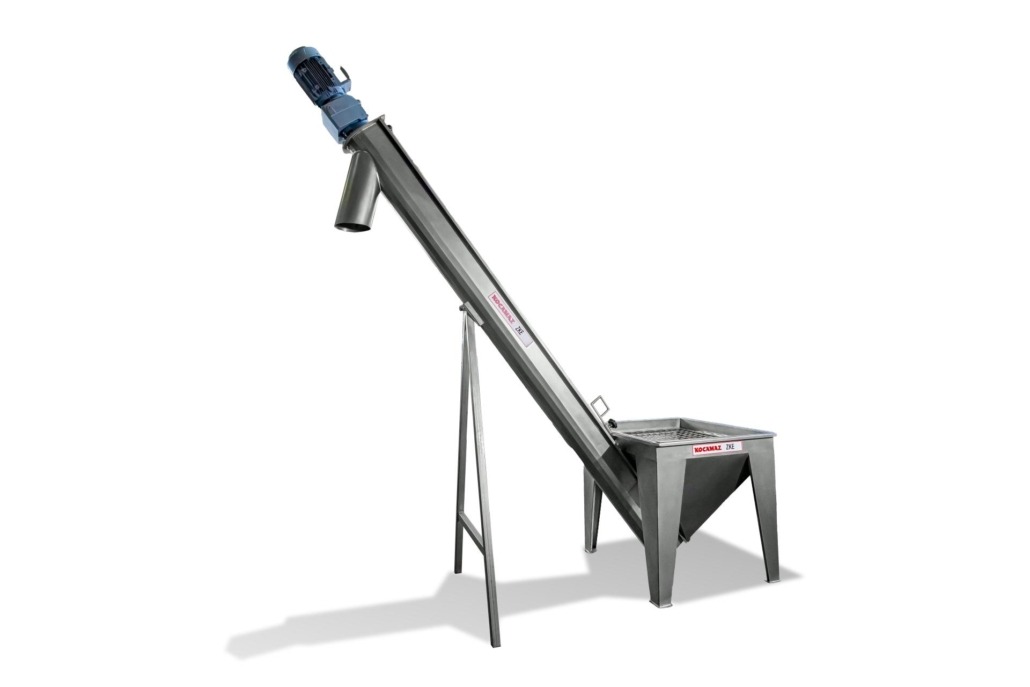

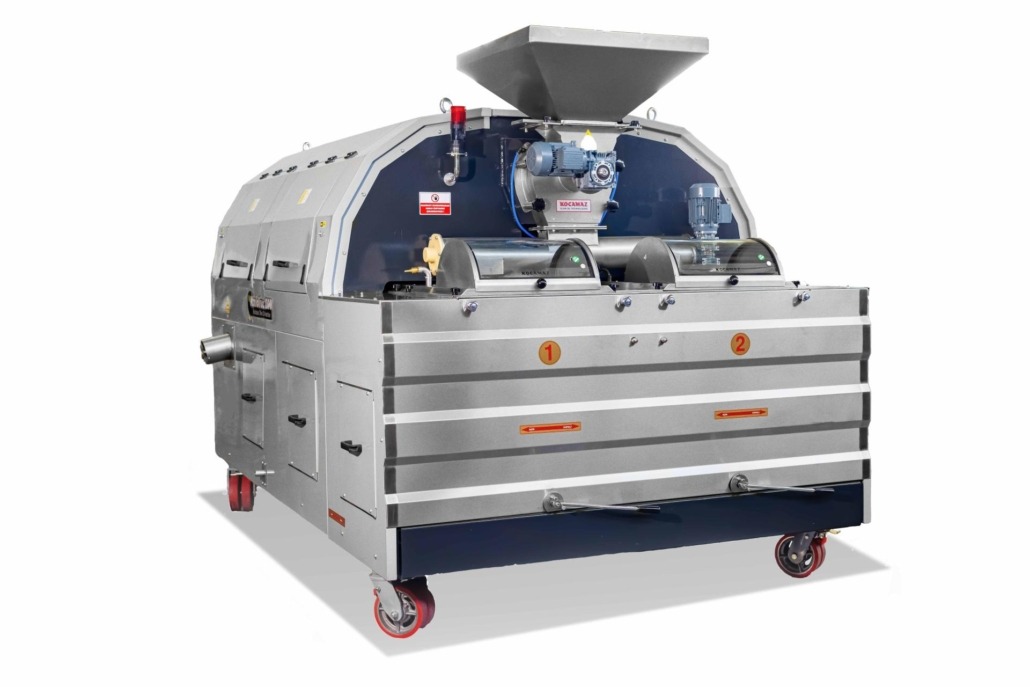

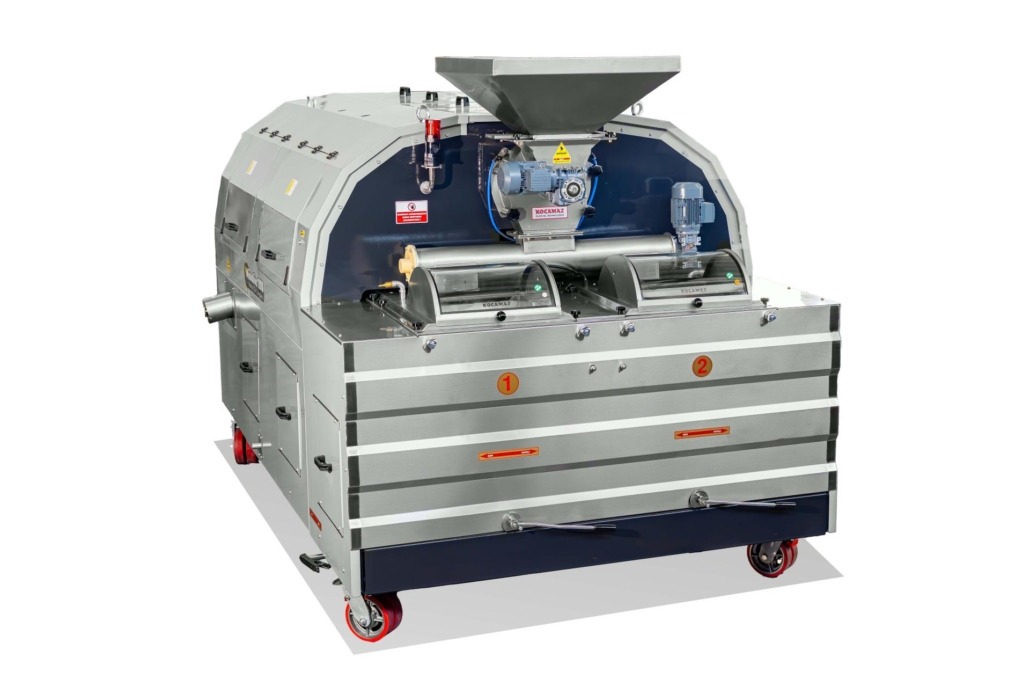

AL AFANDY Miniolive 1200 olive oil line
AL AFANDY Miniolive 1200 olive oil line

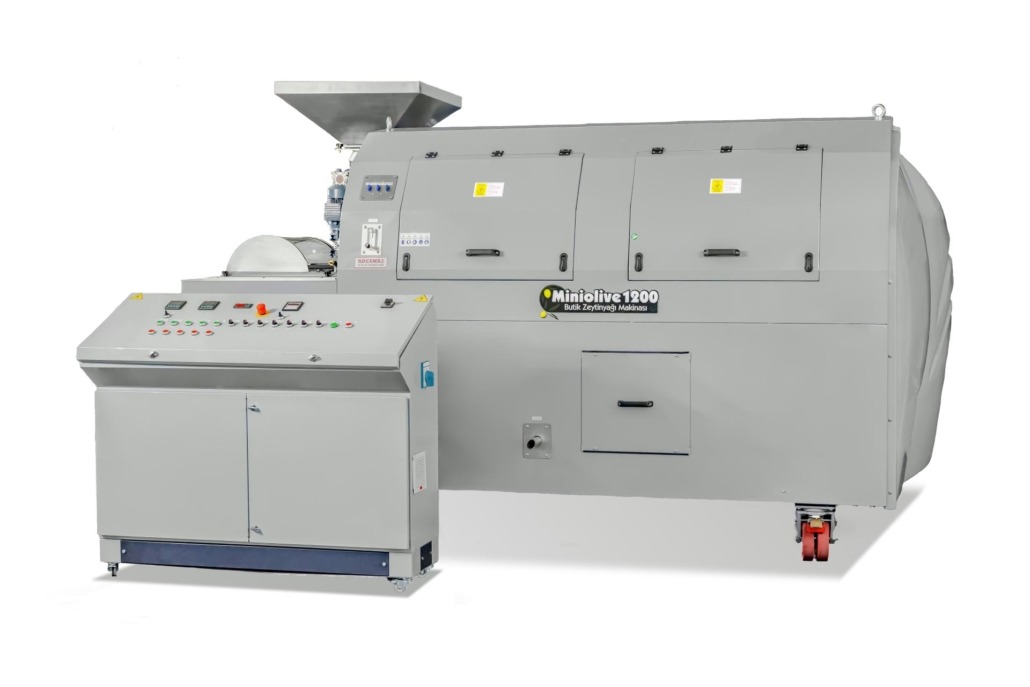

AL AFANDY Miniolive 1200 olive oil line
AL AFANDY Miniolive 1200 olive oil line
AL AFANDY Miniolive 1200 olive oil line
AL AFANDY Miniolive 1200 olive oil line
AL AFANDY Miniolive 1200 olive oil line

Miniolive 1200

1100–1200 kg/h • Dimensions 2400 × 3800 × 2300 mm • Weight 2900 kg • Installed power 35.38 kW, 380 V, 50 Hz • Approx. consumption 28 kW • Decanter 3600 rpm, AISI 304, cycloid gearbox • Horizontal malaxers 2 × 730 kg • Malaxer heating included • Control panel 380–400 V / 24 V

Need Help Choosing the Right Capacity?

Tell us your olive quantity, operating hours and project country. Our team will recommend the most suitable production line.
